| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,900 pcs
|
3900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

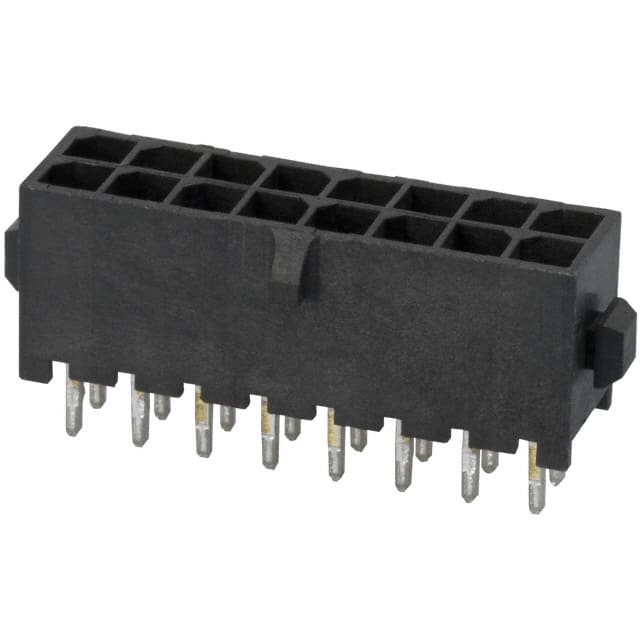

The TE Connectivity 4-794630-6 is a 16-position header from the Micro MATE-N-LOK connector system. It features a 3.00mm pitch and dual-row configuration, designed for wire-to-board connections. The header is shrouded with a 4-wall design and includes a locking ramp for secure mating. Contacts are male pins made of brass with a 100µin tin finish. The insulation is black polyamide (PA) nylon with a UL94 V-0 flammability rating. This through-hole component supports press-fit and solder termination. It is rated for 250V and operates from -40°C to 105°C. Typical applications include household appliances, lighting, factory automation, and gaming systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.10 | $2.10 |
| 130+ | $1.75 | $1.75 |
| 520+ | $1.59 | $1.59 |
| 1,040+ | $1.52 | $1.52 |
| 5,070+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
3.00mm (0.118 inches).
250V.
Through hole.
-40°C to 105°C.
Tin with 100µin thickness.
Yes, it has a shrouded 4-wall design.
