| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
143 pcs
|
143 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

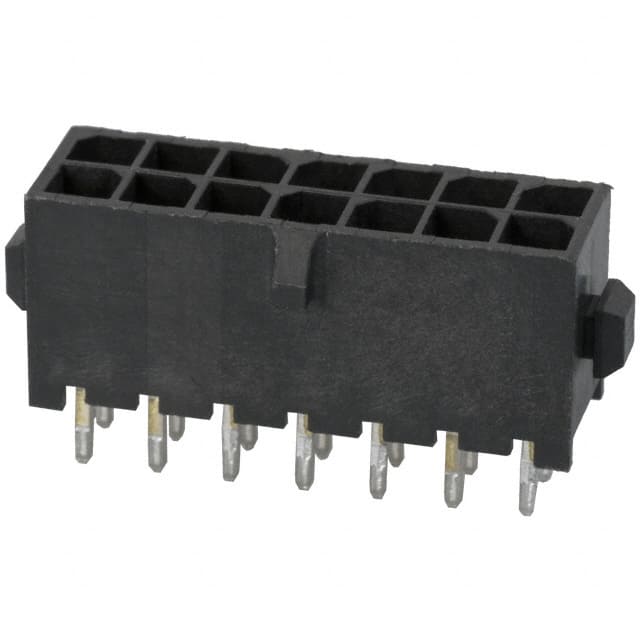

The TE Connectivity 4-794630-4 is a Micro MATE-N-LOK connector system header designed for wire-to-board connections. It features a 14-position, dual-row configuration with a 3.00mm pitch and a through-hole mounting style.
This shrouded header offers a robust connection with a locking ramp fastening type and is constructed with a black polyamide (nylon) insulator rated UL94 V-0. The contacts are made of brass with a tin finish, providing reliable electrical performance. The header is rated for 250V and has an operating temperature range of -40°C to 105°C.
The connector supports press-fit and solder termination, making it suitable for various board assembly processes. Its 4-wall shrouding provides protection for the male pins.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $1.93 | $1.93 |
| 143+ | $1.60 | $1.60 |
| 572+ | $1.45 | $1.45 |
| 1,001+ | $1.39 | $1.39 |
| 5,005+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in a dual-row configuration.
3.00mm (0.118 inches).
Through hole, supporting press-fit and solder termination.
250V.
-40°C to 105°C.
Tin with a thickness of 100.0µin (2.54µm).
