| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,650 pcs
|
1650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

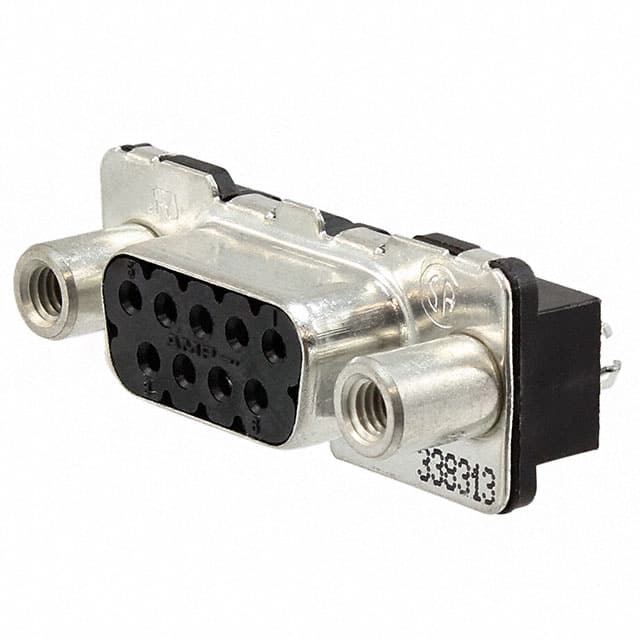

The TE Connectivity 4-338313-2 is a 9-position D-Sub receptacle connector designed for reliable signal transmission in a wide range of electronic applications. It features two rows of female socket contacts with gold plating for low resistance and corrosion resistance. The connector uses solder termination and a through hole mounting style for secure attachment to printed circuit boards. A board lock feature ensures mechanical retention during assembly. The shell is constructed from steel with a tin plated finish, providing EMI shielding and durability. The insulator is rated UL94 V-0 for flammability resistance, making this connector suitable for environments requiring high safety standards. The connector includes a mating side female screwlock (M3) flange feature for secure mating. It is rated for 6A current per contact.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.38 | $10.38 |
| 10+ | $8.82 | $8.82 |
| 25+ | $8.27 | $8.27 |
| 55+ | $7.82 | $7.82 |
| 110+ | $7.45 | $7.45 |
| 275+ | $6.98 | $6.98 |
| 550+ | $6.65 | $6.65 |
| 1,045+ | $6.35 | $6.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions arranged in 2 rows.
Through hole mounting with solder termination.
6A per contact.
Gold.
Steel with tin plating.
Yes, it includes a board lock feature.
