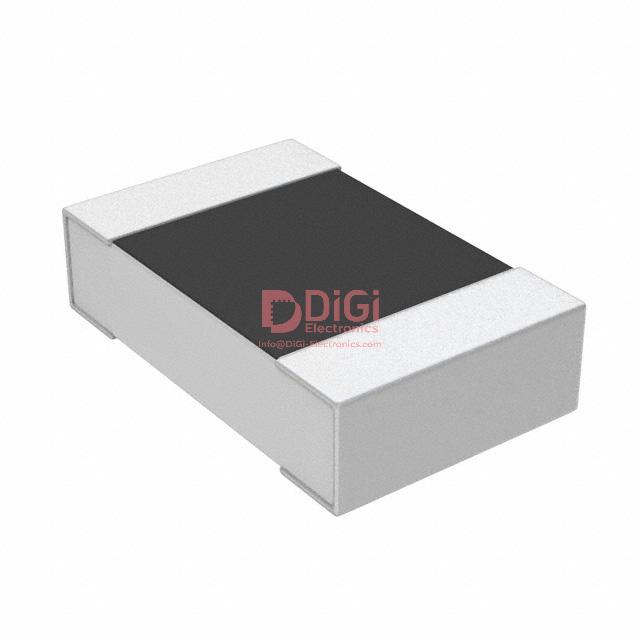

4-2176093-2 This is a TE Connectivity 4-2176093-2 surface mount chip resistor. It features 26.1 kOhms resistance with a tight ±0.1% tolerance and a 0.25W power rating.
Mfr Part #:

4-2176093-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a TE Connectivity 4-2176093-2 surface mount chip resistor. It features 26.1 kOhms resistance with a tight ±0.1% tolerance and a 0.25W power rating.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.05

4-2176093-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4-2176093-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

4-2176093-2 Description

Short technical summary and product information.

The TE Connectivity 4-2176093-2 is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 26.1 kOhms with a precise tolerance of ±0.1%, ensuring accuracy in circuit performance.



This resistor has a power rating of 0.25W (1/4W) and is constructed using thin film technology. It operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. The component is housed in an 0805 (2012 Metric) package.



Key mechanical dimensions include a height of 0.65mm, a length of 2.00mm, and a width of 1.25mm. It has two terminations and is supplied on tape and reel, suitable for automated assembly processes.

4-2176093-2 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RP73P
Canonical Name: TE Connectivity 4-2176093-2 Chip Resistor - Surface Mount
Subcategory: Chip Resistor - Surface Mount

4-2176093-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4-2176093-2 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

4-2176093-2 Features

  • 26.1 kOhms resistance with ±0.1% tolerance.
  • 0.25W power rating for reliable performance.
  • Thin film construction for stability.
  • Wide operating temperature range of -55°C to 155°C.
  • 0805 package size for surface mounting.

4-2176093-2 Applications

  • Ideal for precision analog circuits.
  • Suitable for signal conditioning applications.
  • Used in compact electronic devices.
  • General purpose surface mount resistor.

4-2176093-2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 4-2176093-2 resistor?

The resistance value is 26.1 kOhms.

What is the tolerance of the 4-2176093-2 chip resistor?

The tolerance is ±0.1%.

What is the power rating for the 4-2176093-2 resistor?

The power rating is 0.25W, or 1/4W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package type is the 4-2176093-2 resistor supplied in?

It is supplied in an 0805 (2012 Metric) package.
