| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,302 pcs
|
10302 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

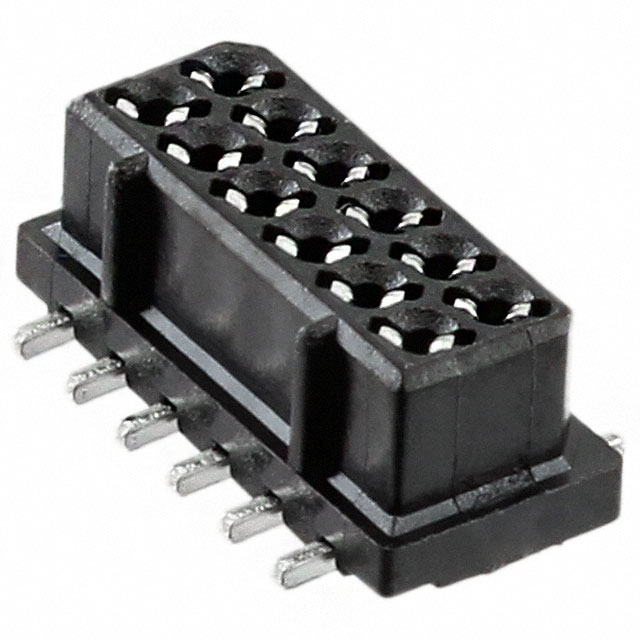

The TE Connectivity 4-176890-2 is a 12-position, 2-row board-to-board header connector with a 1.25mm pitch. It features a shrouded 4-wall design with push-pull fastening, providing secure mating for board-to-board applications. The connector uses circular male pin contacts made of brass with a tin finish, and the black insulation is made of polyphenylene sulfide (PPS) with a flammability rating of UL94 V-0.
This surface-mount header is designed for solder termination and includes a board guide feature to assist with alignment during assembly. The insulation height is 3.96mm, and the connector operates over a temperature range of -30°C to 105°C. With a current rating of 0.5A and a voltage rating of 50V, it is suitable for low-power signal interconnections.
The 1.25mm pitch and compact profile make this connector well-suited for space-constrained PCB designs where reliable board-to-board connections are required. The shrouded design helps protect the contacts and provides polarization for correct mating orientation.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 12 positions in 2 rows, with all positions loaded.
The pitch is 1.25mm (0.049 inches).
The current rating is 0.5A.
The voltage rating is 50V.
This connector uses surface mount mounting with solder termination.
The operating temperature range is -30°C to 105°C.
The insulation is made of polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating.
