| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
992 pcs
|
992 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

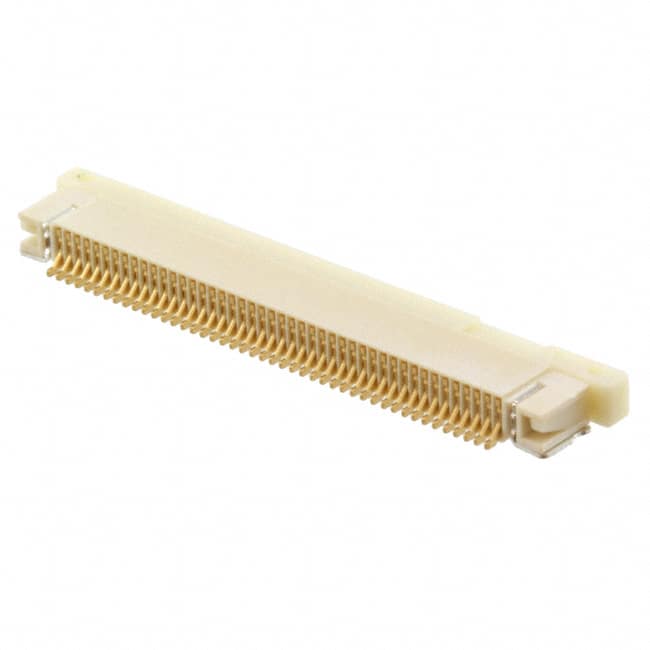

The TE Connectivity 4-1734592-5 is a 45-position FPC connector with a 0.5mm pitch, designed for surface mount right-angle mounting. It features bottom contacts and a slide lock actuator for secure cable retention. The connector supports FPC cables with a thickness of 0.30mm and tapered cable ends. It is rated for 250V and operates over -40°C to 85°C. The housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and contacts are gold-plated phosphor bronze. This connector includes solder retention features and zero insertion force (ZIF) mechanism for easy cable insertion. It is suitable for applications requiring compact, reliable interconnects in consumer electronics, automotive, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.17 | $2.17 |
| 10+ | $1.84 | $1.84 |
| 25+ | $1.72 | $1.72 |
| 50+ | $1.64 | $1.64 |
| 100+ | $1.56 | $1.56 |
| 250+ | $1.47 | $1.47 |
| 500+ | $1.40 | $1.40 |
| 1,000+ | $1.33 | $1.33 |
| 2,000+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45 positions.
0.5mm.
250V.
Surface mount, right angle.
-40°C to 85°C.
Slide lock.
Gold.
