| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

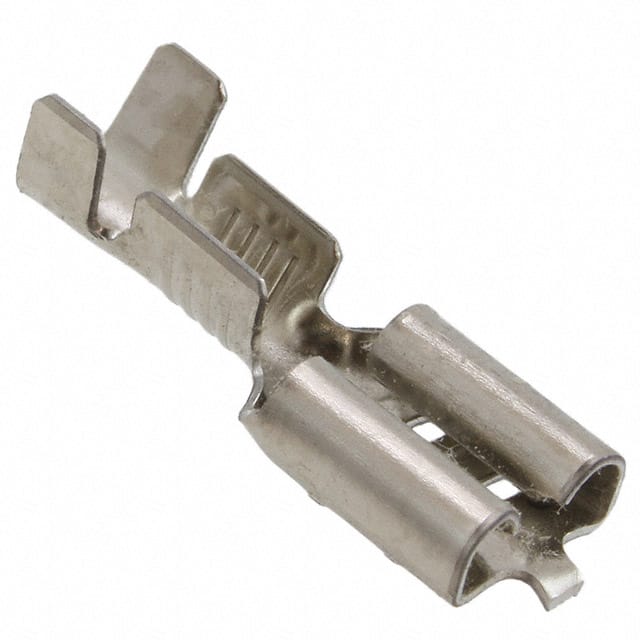

The TE Connectivity 4-160256-2 is a non-insulated female quick disconnect terminal, part of the industry-standard 0.250" tab size family. It accepts 13-17 AWG wire and uses a crimp termination method for secure, reliable connections. The contact is made of steel with a nickel finish, offering good conductivity and corrosion resistance.
This terminal is designed for free hanging (in-line) mounting, making it suitable for a wide range of wire-to-wire or wire-to-tab connections in automotive, appliance, and industrial applications. The overall length is 19.00mm (0.748").
As a non-insulated terminal, it requires additional insulation or heat shrink if used in environments where shorting or contact with other conductors is a concern. The tab dimensions are 0.250" width, 0.032" thickness, and 0.303" length, ensuring compatibility with standard 0.250" male quick disconnect tabs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
| 10+ | $0.19 | $0.19 |
| 25+ | $0.18 | $0.18 |
| 50+ | $0.17 | $0.17 |
| 100+ | $0.16 | $0.16 |
| 250+ | $0.15 | $0.15 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.14 | $0.14 |
| 2,500+ | $0.13 | $0.13 |
| 5,000+ | $0.12 | $0.12 |
| 10,000+ | $0.12 | $0.12 |
| 15,000+ | $0.11 | $0.11 |
| 25,000+ | $0.11 | $0.11 |
| 35,000+ | $0.11 | $0.11 |
| 50,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 13-17 AWG wire.
The tab width is 0.250" (6.35mm).
No, it is non-insulated.
The contact is made of steel with a nickel finish.
It uses crimp termination.
The overall length is 19.00mm (0.748").
