| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,450 pcs
|
2450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Contact Underplate | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Shell Material, Finish | |
| Shell Plating | |
| Shell Size, Connector Layout | |
| Solder Cup Finish | |
| Termination | |
| Termination Style | |
| Torque Retention |

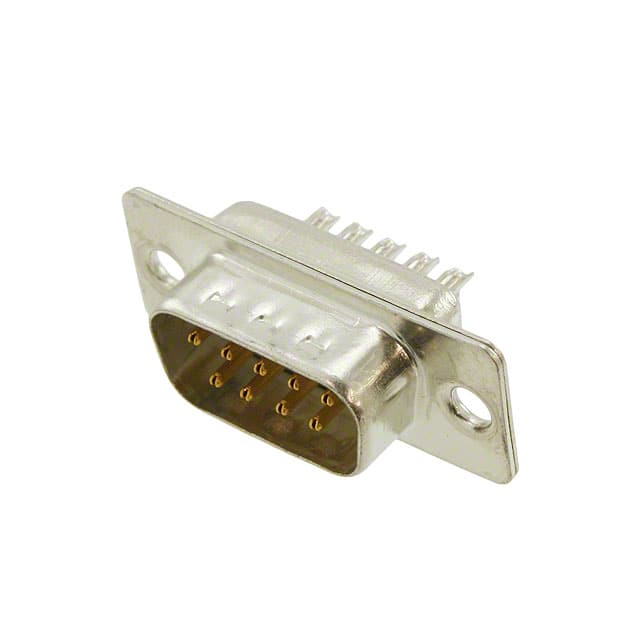

This D-Sub connector from TE Connectivity is a 9-position plug with male pins. It features a solder cup termination style for easy wire attachment and a free hanging (in-line) mounting type. The contacts are gold plated on the mating surface for reliable signal integrity, with a nickel underplate and matte tin finish on the solder cup end. The steel shell is finished with bright tin over nickel and includes grounding indents for EMI control. Rated for 3A continuous current, this connector meets UL94 V-0 flammability rating. The package is a blister pack. The connector layout is shell size 1 (DE, E) with two rows of contacts. It includes a housing/shell unthreaded flange feature and M3 self-locking nuts with 80 Ncm torque retention. Designed for use in cable assemblies and panel-mount applications requiring a 9-pin D-sub interface.
This D-Sub plug has 9 positions.
The current rating is 3A.
Free hanging (in-line) mounting.
Gold finish on the mating surface, with nickel underplate and matte tin on the solder cup end.
Solder cup termination.
Steel shell with bright tin over nickel plating.
UL94 V-0.
