Mfr Part #:

3VL98002AE00

Mfr Name: Siemens

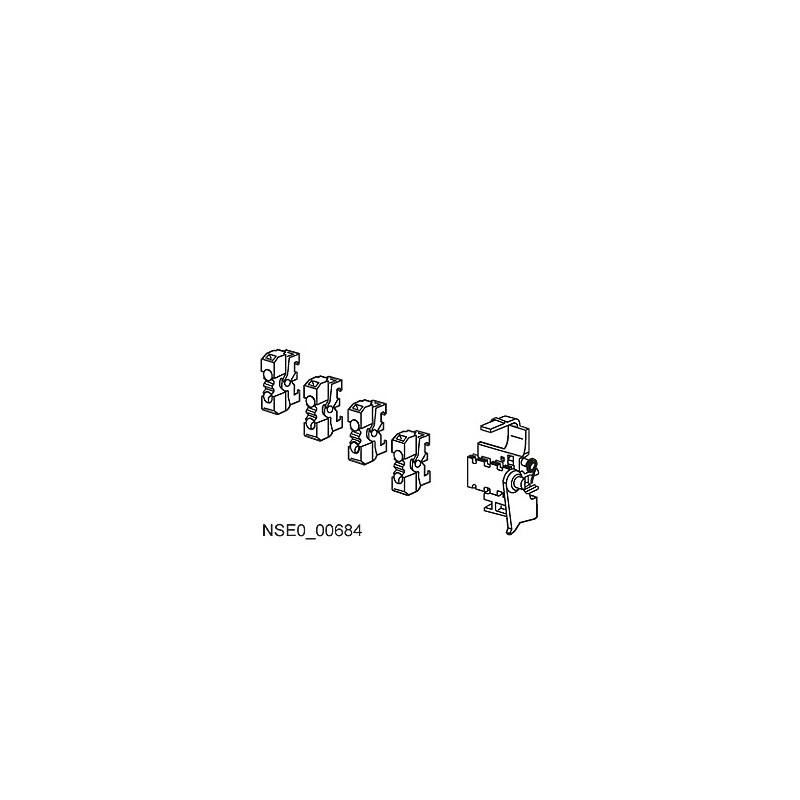

The Siemens 3VL98002AE00 is an accessory for VL630, VL800, VL1250, and VL1600 circuit breakers. It functions as an auxiliary/alarm switch kit.

✓ Total Stock: 2 pcs

$ Price Range: $0.99

3VL98002AE00 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Chanetech ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

3VL98002AE00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Siemens

View Similar Products (0)

3VL98002AE00 Description

Short technical summary and product information.

This Siemens 3VL98002AE00 is an accessory designed for use with VL630, VL800, VL1250, and VL1600 circuit breakers. It serves as an auxiliary and alarm switch kit, providing 2 HS (1NO+1NC) and 1 AS (1NO) contacts for mounting on the left side.

The accessory is part of the SENTRON product family from Siemens. It has a net weight of 0.08 kg and comes with 1 unit per package.

This product is listed under ETIM classification EC002498 as an accessory/spare part for low-voltage switch technology. It is categorized under POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Moulded Case Circuit Breakers 3VL.

Note: This product has a Product Lifecycle (PLM) status of PM400: Phase Out Started, with the phase-out effective from 14.11.2018.

3VL98002AE00 Quick Information

Product Type: Accessory

Series: 3VL

Canonical Name: Siemens 3VL98002AE00 Auxiliary/Alarm Switch Kit

Subcategory: Auxiliary/Alarm Switch Kit

3VL98002AE00 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

3VL98002AE00 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3VL98002AE00 Features

Accessory for VL630, VL800, VL1250, VL1600.
Auxiliary/alarm switch kit functionality.
Includes 2 HS (1NO+1NC) contacts.
Includes 1 AS (1NO) contact.
Designed for left-side mounting.

3VL98002AE00 Applications

Used with Siemens VL circuit breakers.
Provides auxiliary contact functions.
Enables alarm signaling.
Suitable for low-voltage switchgear.

3VL98002AE00 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the Siemens 3VL98002AE00?

It is an auxiliary/alarm switch kit for VL630, VL800, VL1250, VL1600 circuit breakers.

What contacts does the switch kit include?

It includes 2 HS (1NO+1NC) and 1 AS (1NO).

What is the net weight of the kit?

0.08 kg.

How is the kit packaged?

Packaged as a single unit.

Which circuit breakers is this kit compatible with?

Compatible with VL630, VL800, VL1250, and VL1600.

On which side is the kit mounted?

Mounted on the left side.
