3VA9473-0JA13
Siemens
This Siemens 3VA9473-0JA13 is a box terminal accessory designed for 3VA5/6 400/600 circuit breakers. It supports a wide range of conductor sizes according to IEC and UL standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

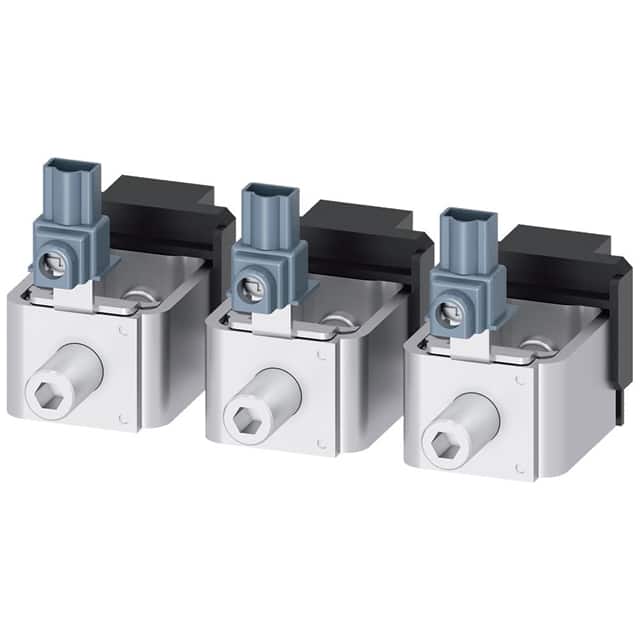

This Siemens SENTRON 3VA9473-0JH13 is a box terminal accessory with a control wire tap, supplied in a pack of 3 pieces. It is designed for use with 3VA5 and 3VA6 series circuit breakers rated for 400/600A.
The terminal designation is TS1.5. For IEC connections, it accommodates copper cable with stranded conductor cross-sections ranging from a minimum of 35 mm² to a maximum of 300 mm². The stripped length required is 26.5 mm. Tightening torques for IEC connections vary based on conductor size, with 16 Nm for 35-95 mm² and 28 Nm for 120-300 mm² stranded conductors.
According to UL standards, it supports stranded copper cable with a minimum cross-section of 1/0 AWG and a maximum of 500 kcmil. For finely stranded conductors, the range is also from 1/0 AWG minimum to 500 kcmil maximum. The stripped length for UL connections is 1.05 inches. Tightening torques for UL connections are 140 lb-in for 1/0 - 4/0 AWG stranded and finely stranded conductors, and 248 lb-in for 250 - 500 kcmil stranded and finely stranded conductors.
The terminal designation is TS1.5.
The maximum connectable conductor cross-section for stranded copper cable under IEC standards is 300 mm².
The stripped length required for IEC connections is 26.5 mm.
The tightening torque for stranded conductors between 120-300 mm² in IEC connections is 28 Nm.
The maximum connectable conductor cross-section for stranded or finely stranded copper cable under UL standards is 500 kcmil.
The stripped length required for UL connections is 1.05 inches.
The RoHS status is RoHS3 Compliant.
