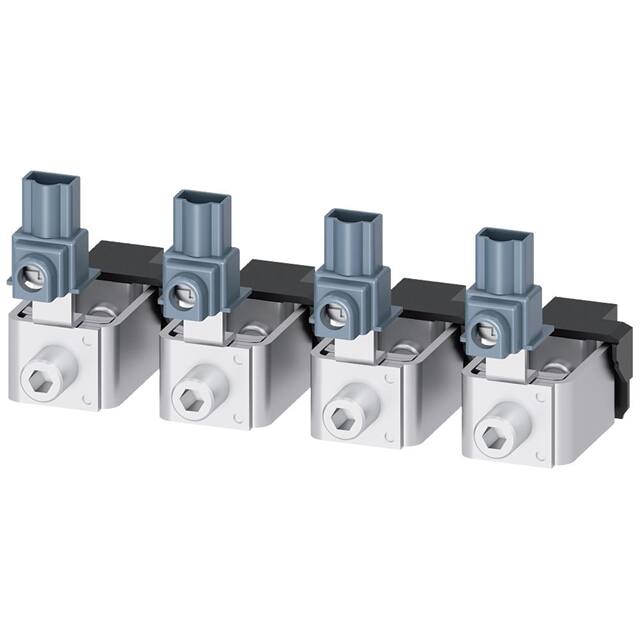

3VA9244-0JH12 The Siemens 3VA9244-0JH12 is a box terminal accessory designed for use with 3VA6 150/250 circuit breakers. It facilitates connections for various conductor sizes according to IEC and UL standards.
Mfr Part #:

3VA9244-0JH12

Mfr Name: Siemens
Siemens
The Siemens 3VA9244-0JH12 is a box terminal accessory designed for use with 3VA6 150/250 circuit breakers. It facilitates connections for various conductor sizes according to IEC and UL standards.
Stock on Request

3VA9244-0JH12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9244-0JH12 Description

Short technical summary and product information.

This Siemens SENTRON accessory, part number 3VA9244-0JH12, is a box terminal designed to enhance the connectivity of 3VA6 150/250 circuit breakers. It supports a wide range of conductor cross-sections, accommodating both stranded and finely stranded copper cables.



According to IEC standards, it accepts conductor sizes from 25 mm² to 185 mm², with specific tightening torque requirements for different ranges. For UL applications, it accommodates stranded and finely stranded copper cables from 4 AWG to 350 kcmil, also with defined tightening torque specifications.



The accessory features a stripped length requirement of 20 mm for IEC connections and 0.8 inches for UL connections. This ensures proper and secure electrical connections for various industrial and commercial applications.



This component is part of the Siemens SENTRON line, known for reliable circuit protection solutions. Its design focuses on providing robust and versatile terminal connections for power distribution systems.

3VA9244-0JH12 Quick Information

Product Type: Terminal Block Accessory
Series: 3VA6
Canonical Name: Siemens SENTRON 3VA9244-0JH12 Box Terminal Accessory
Subcategory: Box Terminal

3VA9244-0JH12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9244-0JH12 Features

  • Box terminal accessory for 3VA6 150/250.
  • Supports IEC stranded copper cable 25-185 mm².
  • Supports UL stranded copper cable 4 AWG-350 kcmil.
  • Includes IEC and UL tightening torque specifications.
  • Designed for secure electrical connections.

3VA9244-0JH12 Applications

  • Used with Siemens 3VA6 circuit breakers.
  • Facilitates secure conductor termination.
  • Suitable for power distribution systems.
  • Ensures reliable electrical connections.

3VA9244-0JH12 FAQs

6 frequently asked questions generated from this part’s specifications.
What conductor sizes does the Siemens 3VA9244-0JH12 support under IEC standards?

Under IEC standards, the 3VA9244-0JH12 supports stranded copper cables with a minimum cross-section of 25 mm² and a maximum of 185 mm².

What are the tightening torque requirements for IEC connections on this terminal block?

For IEC connections using stranded copper cables, the tightening torque is 6 Nm for 25-35 mm² and 12 Nm for 50-185 mm². For finely stranded cables, it's 6 Nm for 35 mm² and 12 Nm for 50-150 mm².

What conductor sizes does the Siemens 3VA9244-0JH12 support under UL standards?

Under UL standards, the 3VA9244-0JH12 supports stranded and finely stranded copper cables from a minimum of 4 AWG to a maximum of 350 kcmil.

What are the tightening torque requirements for UL connections on this terminal block?

For UL connections using stranded or finely stranded copper cables, the tightening torque is 70 lb-in for 4-1 AWG and 140 lb-in for 1/0-350 kcmil.

What is the accessory type for the Siemens 3VA9244-0JH12?

The accessory type for the Siemens 3VA9244-0JH12 is a Terminal Block.

What Siemens circuit breakers is this accessory designed for?

This accessory is designed for use with Siemens 3VA6 150/250 circuit breakers.

3VA9244-0JH12 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
