3VA9143-0JG11
Siemens
Siemens 3VA9143-0JG11 wire connector accessory for 3VA6 150/250 circuit breakers. Supports copper conductors from 1.5 mm² to 50 mm².
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

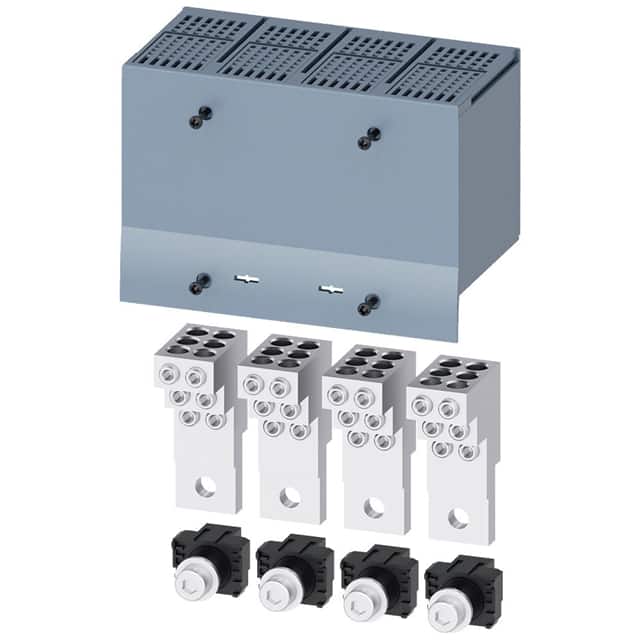

This Siemens 3VA9244-0JF60 is a wire connector accessory, part of the SENTRON product line, specifically designed for use with 3VA6 150/250 circuit breakers. It facilitates connections for both copper and aluminum cables.
The connector supports stranded copper conductors ranging from a minimum of 1.5 mm² to a maximum of 35 mm² according to IEC standards. For UL connections, it accommodates solid copper conductors from 14 AWG to 10 AWG, and stranded or finely stranded copper conductors from 14 AWG to 2 AWG. Aluminum cable compatibility includes solid and stranded conductors from 12 AWG to 10 AWG (solid) and 12 AWG to 2 AWG (stranded).
Tightening torque specifications are provided for both IEC and UL standards, ensuring secure connections. For IEC connections, torques range from 2.8 Nm to 7 Nm depending on conductor type and size. UL specifications include torques of 55 lb-in and 62 lb-in for various copper conductor types and sizes. The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.
The terminal designation is TA2.6.
It accepts stranded copper cable from 1.5 mm² to 35 mm².
The tightening torque is 2.8 Nm.
The permissible conductor temperature is 75 °C.
Stripped length options are 13.5 mm, 26 mm, and 38.5 mm.
