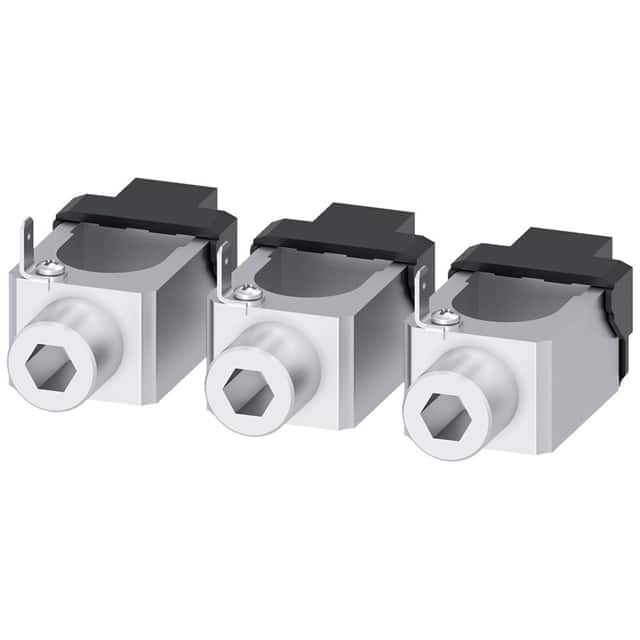

The Siemens SENTRON 3VA9243-0JK12 is a wire connector accessory designed for use with 3VA6 150/250 circuit breakers. This accessory features a circular conductor terminal design and is constructed from copper (CU) with a control wire voltage tap-off.
It supports both stranded and finely stranded copper cables, with a minimum cross-section of 6 AWG and a maximum of 350 kcmil. The required stripped length for IEC connections is 20 mm, while for UL connections it is 0.8 inches. Tightening torque specifications are provided for various conductor sizes, ranging from 140 lb-in for 6-2 AWG conductors to 275 lb-in for 1 AWG to 350 kcmil conductors, applicable to both stranded and finely stranded cables.
The permissible temperature for connectable conductors according to UL 486A-486B is 90 °C. This wire connector is supplied in a pack of 3 units.
The Siemens 3VA9243-0JK12 is a wire connector accessory designed for 3VA6 150/250 circuit breakers.
It supports stranded and finely stranded copper cable from a minimum of 6 AWG to a maximum of 350 kcmil.
The permissible temperature for connectable conductors according to UL 486A-486B is 90 °C.
The stripped length is 20 mm according to IEC and 0.8 inches according to UL.
For stranded and finely stranded copper cables, the tightening torque is 140 lb-in for 6-2 AWG and 275 lb-in for 1 AWG - 350 kcmil.
The wire connector is supplied in a pack of 3 units.
