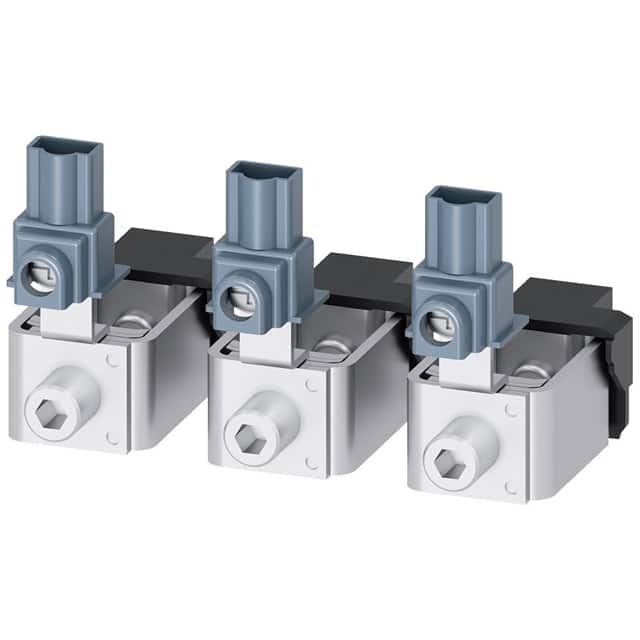

3VA9243-0JH12 The Siemens 3VA9243-0JH12 is a box terminal accessory designed for use with 3VA6 150/250 circuit breakers. It offers connections compliant with both IEC and UL standards.
Mfr Part #:

3VA9243-0JH12

Mfr Name: Siemens
Siemens
The Siemens 3VA9243-0JH12 is a box terminal accessory designed for use with 3VA6 150/250 circuit breakers. It offers connections compliant with both IEC and UL standards.
Stock on Request

3VA9243-0JH12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9243-0JH12 Description

Short technical summary and product information.

This Siemens 3VA9243-0JH12 is a box terminal accessory, part of the SENTRON product line, specifically designed as an accessory for the 3VA6 150/250 series circuit breakers. It facilitates connections for control wires with voltage tap-off functionality.



The accessory supports conductor cross-sections ranging from 25 mm² to 185 mm² for copper cable (stranded) according to IEC standards, with a stripped length of 20 mm. Tightening torques for stranded copper cables are specified as 6 Nm for 25-35 mm² and 12 Nm for 50-185 mm². For finely stranded cables, torques are 6 Nm for 35 mm² and 12 Nm for 50-150 mm².



According to UL standards, the terminal block accommodates stranded and finely stranded copper cables from 4 AWG to 350 kcmil. The stripped length required is 0.8 inches. Tightening torques under UL specifications are 70 lb-in for 4-1 AWG and 140 lb-in for 1/0-350 kcmil for both stranded and finely stranded copper cables.



This accessory is crucial for ensuring secure and compliant electrical connections in systems utilizing the specified Siemens circuit breakers.

3VA9243-0JH12 Quick Information

Product Type: Accessory
Series: 3VA6
Canonical Name: Siemens 3VA9243-0JH12 Box Terminal Accessory
Subcategory: Box Terminal

3VA9243-0JH12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9243-0JH12 Features

  • Box terminal accessory for 3VA6 150/250 breakers.
  • IEC connections for 25-185 mm² stranded copper.
  • UL connections for 4 AWG to 350 kcmil copper.
  • Specific tightening torques provided for IEC and UL.
  • Facilitates control wire voltage tap-off.

3VA9243-0JH12 Applications

  • Used with Siemens 3VA6 circuit breakers.
  • Enables secure conductor terminations.
  • Supports voltage tap-off for control wires.
  • Ensures compliance with IEC and UL standards.

3VA9243-0JH12 FAQs

6 frequently asked questions generated from this part’s specifications.
What conductor sizes are supported by the Siemens 3VA9243-0JH12 terminal block according to IEC standards?

The terminal block supports stranded copper cable sizes from a minimum of 25 mm² to a maximum of 185 mm².

What is the required stripped length for conductors connected to the 3VA9243-0JH12 terminal block under IEC?

The required stripped length for conductors is 20 mm.

What are the tightening torque specifications for stranded copper cables connected to the 3VA9243-0JH12 terminal block under IEC?

For stranded copper cables, the tightening torque is 6 Nm for 25-35 mm² and 12 Nm for 50-185 mm².

What conductor sizes are supported by the Siemens 3VA9243-0JH12 terminal block according to UL standards?

The terminal block supports stranded and finely stranded copper cable sizes from a minimum of 4 AWG to a maximum of 350 kcmil.

What is the required stripped length for conductors connected to the 3VA9243-0JH12 terminal block under UL?

The required stripped length for conductors is 0.8 inches.

What are the tightening torque specifications for stranded copper cables connected to the 3VA9243-0JH12 terminal block under UL?

For stranded copper cables, the tightening torque is 70 lb-in for 4-1 AWG and 140 lb-in for 1/0-350 kcmil.

3VA9243-0JH12 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
3VA9144-0JH12
3VA9144-0JH12
Siemens
The Siemens 3VA9144-0JH12 is a box terminal block accessory designed for use with 3VA6 150/250 circuit breakers. It provides connections according to both IEC and UL standards.
View Part
