3VA9234-0JG12 The Siemens 3VA9234-0JG12 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It supports a wide range of conductor sizes according to both IEC and UL standards.
Mfr Part #:

3VA9234-0JG12

Mfr Name: Siemens
Siemens
The Siemens 3VA9234-0JG12 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It supports a wide range of conductor sizes according to both IEC and UL standards.
Stock on Request

3VA9234-0JG12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9234-0JG12 Description

Short technical summary and product information.

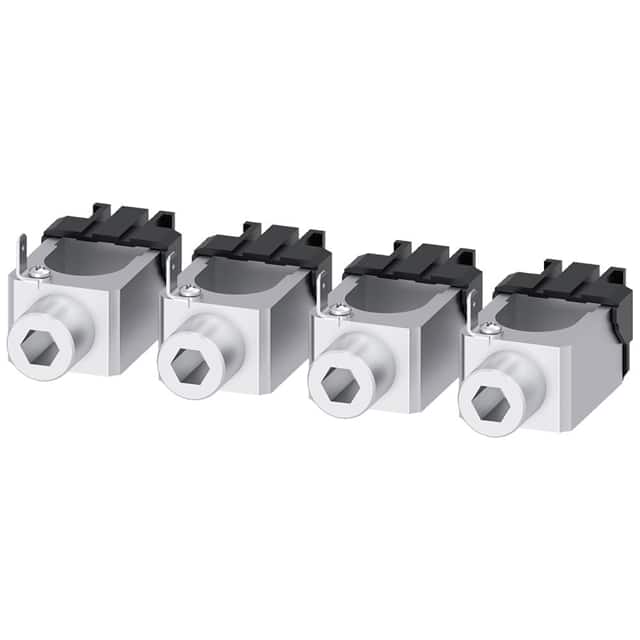

This Siemens 3VA9234-0JG12 is a wire connector accessory, part of the SENTRON product line. It is specifically designed for use with 3VA5 250 circuit breakers, providing a reliable connection point.



The connector accommodates various conductor types and sizes. According to IEC standards, it supports stranded copper and aluminum cables ranging from a minimum of 16 mm² to a maximum of 185 mm². For solid aluminum cables, the range is also 16 mm² minimum and maximum. The stripped length required for connections is 20 mm.



Under UL standards, the connector is suitable for stranded and finely stranded copper cables from a minimum of 6 AWG to a maximum of 350 kcmil. It also supports stranded aluminum cables within the same range. The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C. The stripped length for UL connections is 0.8 inches.



Installation involves specific tightening torques to ensure secure connections. For copper cables under IEC, torques range from 15.8 Nm for smaller gauges (16-35 mm²) up to 31.1 Nm for larger gauges (50-185 mm²). UL tightening torques for copper cables are 140 lb-in for 6-2 AWG and 275 lb-in for 1 AWG to 350 kcmil.

3VA9234-0JG12 Quick Information

Product Type: Wire Connector
Canonical Name: Siemens 3VA9234-0JG12 Wire Connector
Subcategory: Accessories

3VA9234-0JG12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9234-0JG12 Features

  • Connects copper and aluminum conductors.
  • Supports IEC conductor sizes 16-185 mm².
  • Supports UL conductor sizes 6 AWG-350 kcmil.
  • Designed for Siemens 3VA5 250 circuit breakers.
  • Includes specified tightening torques for secure connections.

3VA9234-0JG12 Applications

  • Used as an accessory for circuit breakers.
  • Facilitates conductor connections in electrical panels.
  • Suitable for industrial control systems.
  • Applicable in power distribution applications.

3VA9234-0JG12 FAQs

6 frequently asked questions generated from this part’s specifications.
What cable sizes does this connector accept?

Under IEC, it accepts copper stranded cables from 16 mm² to 185 mm² and aluminum stranded cables from 16 mm² to 185 mm². Under UL, it accepts copper stranded cables from 6 AWG to 350 kcmil and aluminum stranded cables from 6 AWG to 350 kcmil.

What is the recommended tightening torque?

For copper cables under IEC, use 15.8 Nm for 16-35 mm² and 31.1 Nm for 50-185 mm². Under UL, use 140 lb-in for 6-2 AWG and 275 lb-in for 1 AWG-350 kcmil.

What is the stripped length required?

The stripped length is 20 mm.

What is the temperature rating?

The permissible temperature is 75 °C according to UL 486A-486B.

Does the connector support aluminum cables?

Yes, it supports aluminum stranded cables from 16 mm² to 185 mm² (IEC) and 6 AWG to 350 kcmil (UL).

What are the UL ratings for this connector?

Under UL 486A-486B, the connector is rated for copper and aluminum cables from 6 AWG to 350 kcmil at 75 °C, with tightening torque of 140 lb-in for 6-2 AWG and 275 lb-in for 1 AWG-350 kcmil.
