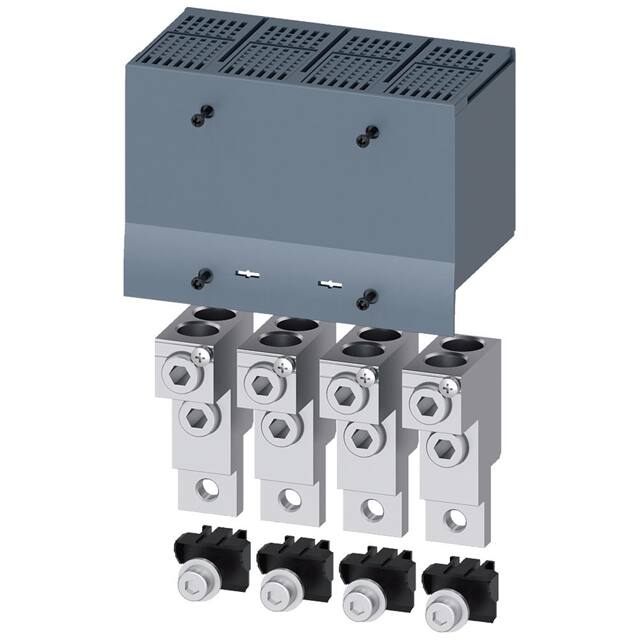

This Siemens 3VA9234-0JC22 is a wire connector accessory, specifically a terminal block, designed for use with the 3VA5 250 circuit breaker series. It supports 2 cables with control wire voltage tap-off functionality.
The connector is engineered to handle a wide range of conductor sizes. According to IEC standards, it accepts copper or aluminum stranded conductors with cross-sections from a minimum of 25 mm² to a maximum of 150 mm². The required stripped length for these connections is between 26 mm and 51 mm. For copper cables within this range, the recommended tightening torque is 31.1 Nm for both stranded and finely stranded conductors.
Under UL standards (UL 486A-486B), the permissible temperature for the connectable conductor is 75 °C. The stripped length for UL connections is 1.0 to 2.0 inches. The connectable conductor cross-section ranges from a minimum of 4 AWG to a maximum of 300 kcmil for copper (stranded and finely stranded) and aluminum (stranded) cables. The tightening torque for these connections is specified as 275 lb-in for both stranded and finely stranded copper cables.
This accessory is part of the SENTRON product line from Siemens, offering reliable connectivity solutions for electrical installations. Its robust design ensures secure and efficient connections in demanding applications.
It accepts copper or aluminum stranded conductors from 25 mm² to 150 mm² (IEC) or 4 AWG to 300 kcmil (UL).
Stripping lengths are 26 mm or 51 mm (IEC) and 1.0 in or 2.0 in (UL).
The tightening torque is 31.1 Nm (275 lb-in) for stranded and finely stranded conductors.
The permissible conductor temperature is 75°C according to UL 486A-486B.
This terminal block is for use with Siemens 3VA5 250 circuit breakers.
Yes, it accepts aluminum stranded conductors from 25 mm² to 150 mm² (IEC) or 4 AWG to 300 kcmil (UL).
Yes, it is a wire connector with control wire voltage tap-off for two cables.
