3VA9233-0JD11
Siemens
Siemens 3VA9233-0JD11 is a small lug terminal designed for use with 3VA5 250A 3-pole molded case circuit breakers. It accommodates a conductor range of 14 to 1/0 AWG.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

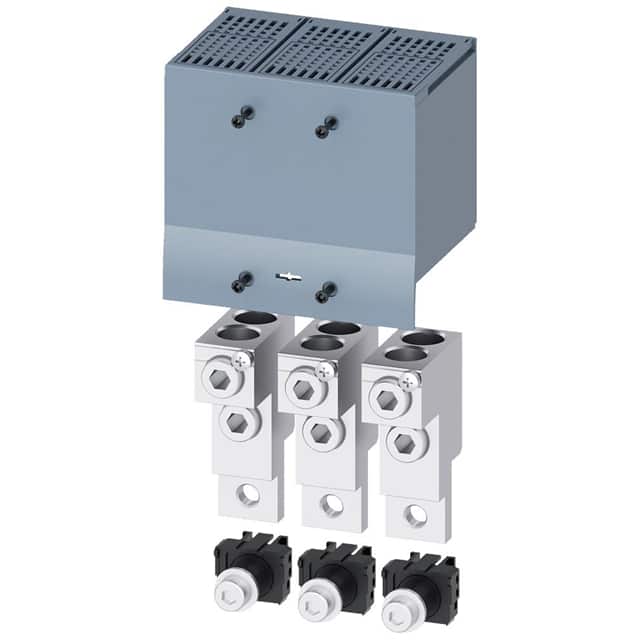

This Siemens SENTRON wire connector, model 3VA9233-0JC22, is an accessory for the 3VA5 250 series circuit breakers. It is designed for connecting two cables with a control wire voltage tap-off.
The connector is suitable for both copper and aluminum stranded conductors, with a minimum cross-section of 25 mm² (4 AWG) and a maximum of 150 mm² (300 kcmil) according to IEC and UL standards, respectively. The stripped length required for connection is 26-51 mm (1.0-2.0 inches).
Electrical specifications include a maximum conductor temperature rating of 75°C according to UL 486A-486B. Tightening torques are specified as 31.1 Nm for copper cables under IEC standards and 275 lb-in for copper cables under UL standards.
This accessory is part of the Siemens SENTRON product line, offering reliable connectivity solutions for circuit protection systems.
The connector supports a maximum conductor cross-section of 150 mm² for stranded copper or aluminum cables according to IEC standards, and 300 kcmil according to UL standards.
The minimum conductor cross-section is 25 mm² for stranded copper or aluminum cables according to IEC standards, and 4 AWG according to UL standards.
The permissible temperature for the connectable conductor is 75 °C according to UL 486A-486B.
The tightening torque for stranded or finely stranded copper cables is 31.1 Nm under IEC standards and 275 lb-in under UL standards.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
Yes, the REACH status is Unaffected.
