3VA9134-0JB10
Siemens
Siemens 3VA9134-0JB10 wire connector accessory for 3VA5 125 circuit breakers. This terminal block offers versatile connections compliant with IEC and UL standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| SVHC Present |

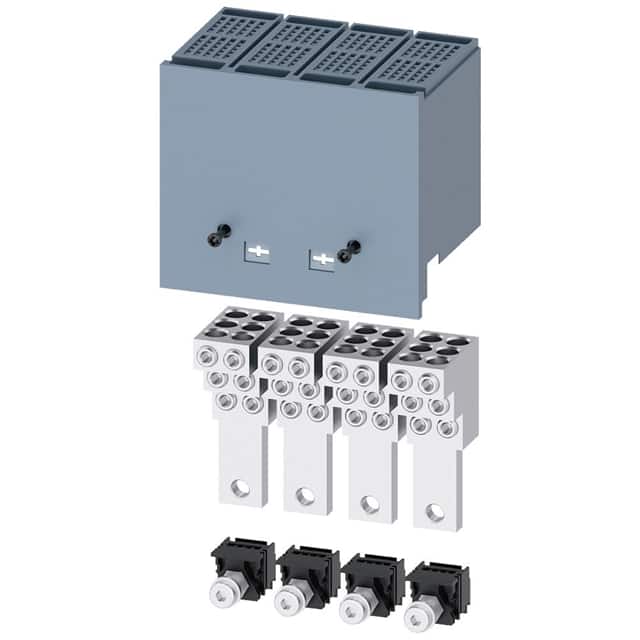

The Siemens 3VA9134-0JF60 is an accessory wire connector for the 3VA5 125 circuit breaker series. This component facilitates electrical connections with support for both IEC and UL standards.
According to IEC standards, it accommodates stranded copper cables with cross-sections ranging from a minimum of 1.5 mm² to a maximum of 35 mm². Tightening torques for solid copper cables vary from 2.8 Nm for 1.5 mm² to 7 Nm for 16 mm². For stranded and finely stranded copper cables, similar torque specifications apply across the supported ranges.
Under UL standards, the permissible temperature for connectable conductors is 75 °C. It supports solid copper and aluminum cables from 14 AWG to 10 AWG, and stranded/finely stranded copper and aluminum cables from 14 AWG up to 2 AWG. Tightening torques for copper cables under UL range from 55 lb-in for smaller gauges to 62 lb-in for larger gauges.
This terminal block accessory is designated as TA2.5 and is crucial for ensuring secure and reliable electrical connections in various applications.
The Siemens 3VA9134-0JF60 is a wire connector accessory, specifically a terminal block designated TA2.5, for use with 3VA5 125 circuit breakers.
According to IEC standards, stranded copper cables with cross-sections from a minimum of 1.5 mm² to a maximum of 35 mm² can be connected.
For solid copper cables under IEC, the tightening torque is 2.8 Nm for 1.5 mm², 6.2 Nm for 2.5 - 10 mm², and 7 Nm for 16 mm².
The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.
Under UL standards, the maximum connectable conductor cross-section for stranded copper cable is 2 AWG.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
