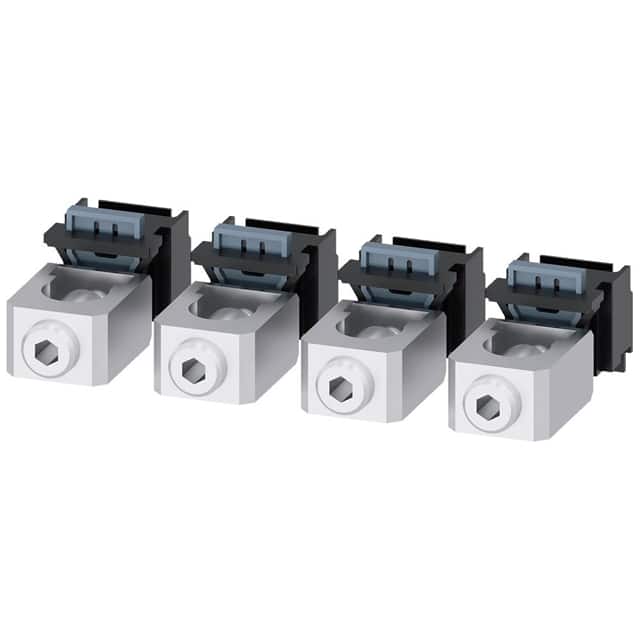

The Siemens 3VA9134-0JD11 is a wire connector accessory designed for use with the 3VA5 125 circuit breaker series. This circular conductor terminal facilitates secure connections for copper cables.
It supports a wide range of conductor sizes, accommodating solid, stranded, and finely stranded copper cables from a minimum of 14 AWG up to a maximum of 2/0 AWG. The required stripped length for connections is 12.2 mm according to IEC standards and 0.48 inches according to UL standards.
Tightening torque specifications are provided for various conductor types and sizes, ensuring proper installation. For solid copper cables, the torque ranges from 25 lb-in for 14 AWG to 55 lb-in for 10 AWG. For stranded and finely stranded copper cables, the torque ranges from 25 lb-in for 14 AWG to 55 lb-in for 10 AWG to 2/0 AWG.
This accessory operates within a permissible conductor temperature of 90 °C, as per UL 486A-486B standards. The product brand name is SENTRON, a recognized line of electrical components from Siemens.
The 3VA9134-0JD11 is a circular conductor terminal wire connector accessory.
This wire connector is designed for use with the Siemens 3VA5 125 circuit breaker series.
It supports copper cable, solid or stranded, from a minimum of 14 AWG to a maximum of 2/0 AWG.
The permissible temperature for the connectable conductor is 90 °C according to UL 486A-486B.
The required stripped length for connections according to IEC is 12.2 mm.
