3VA9133-0JB11
Siemens
The Siemens 3VA9133-0JB11 is a wire connector accessory designed for use with 3VA4/5 125 circuit breakers. It supports a wide range of conductor sizes and tightening torques.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

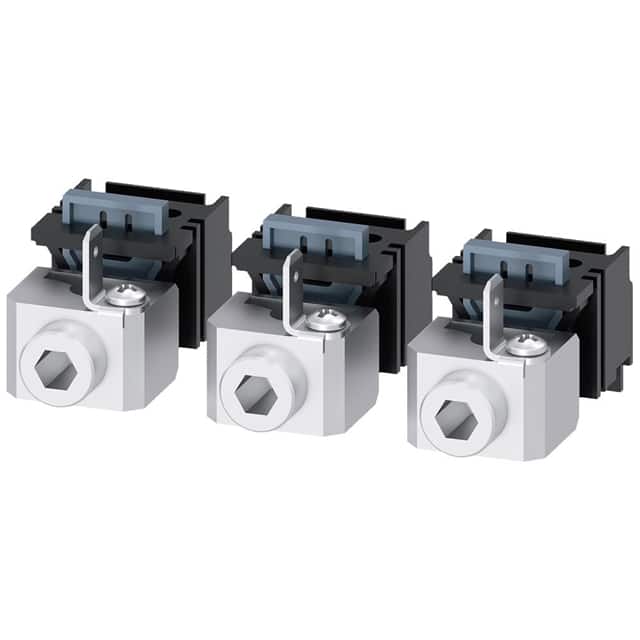

The Siemens 3VA9133-0JK10, part of the SENTRON product line, is a wire connector terminal block identified as TC1.0. This accessory is specifically designed for compatibility with 3VA4/5 125 series circuit breakers, enabling secure connections for copper conductors.
The terminal supports a range of conductor cross-sections, accommodating solid copper wire from 14 to 10 AWG, and stranded or finely stranded copper wire from 14 to 8 AWG. It requires a stripped length of 12.2 mm according to IEC standards and 0.48 inches according to UL standards. Tightening torque specifications are provided for solid, stranded, and finely stranded copper cables, ranging from 20 lb-in for 14 AWG to 55 lb-in for 10-8 AWG.
This wire connector is suitable for applications requiring reliable electrical connections within the specified parameters. Its design focuses on secure termination and ease of use in conjunction with compatible Siemens circuit protection devices.
The accessory type is a Terminal Block.
It is designed for use with 3VA4/5 125 series circuit breakers.
The minimum solid copper conductor size is 14 AWG.
The maximum stranded copper conductor size is 8 AWG.
The required stripped length for IEC connections is 12.2 mm.
The tightening torque for 10 AWG solid copper cables is 55 lb-in.
