3VA9133-0JC12 The Siemens 3VA9133-0JC12 is a wire connector accessory designed for use with 3VA4/5 125 circuit breakers. It supports conductor cross-sections from 25 to 150 mm².
Mfr Part #:

3VA9133-0JC12

Mfr Name: Siemens
Siemens
The Siemens 3VA9133-0JC12 is a wire connector accessory designed for use with 3VA4/5 125 circuit breakers. It supports conductor cross-sections from 25 to 150 mm².
Stock on Request

3VA9133-0JC12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9133-0JC12 Description

Short technical summary and product information.

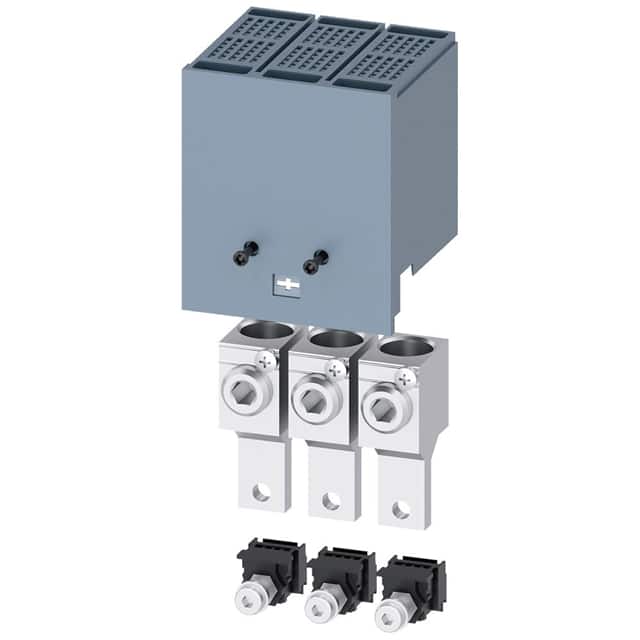

This Siemens 3VA9133-0JC12 is a wire connector accessory, specifically a circular conductor terminal, designed for use with 3VA4/5 125 circuit breakers. It facilitates connections for both copper and aluminum stranded conductors, accommodating a wide range of cross-sections from a minimum of 25 mm² up to a maximum of 150 mm² according to IEC standards.



For UL connections, it supports copper and aluminum stranded conductors from 4 AWG to 300 kcmil. The required stripped length for IEC connections is 30.5 mm, while for UL connections it is 1.2 inches. Tightening torques are specified as 28.5 Nm for copper cables under IEC and 252 lb-in under UL standards. The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.



This accessory is part of the SENTRON product line and is designated as TA2.1. It is suitable for applications requiring reliable and robust wire termination within the specified voltage and current ratings of the compatible circuit breakers.

3VA9133-0JC12 Quick Information

Product Type: Wire Connector
Series: 3VA
Canonical Name: Siemens 3VA9133-0JC12 Wire Connector Accessory
Subcategory: Accessories

3VA9133-0JC12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9133-0JC12 Features

  • Wire connector for Siemens 3VA4/5 125 breakers.
  • Accepts 25–150 mm² stranded copper or aluminum conductors.
  • UL rated for 4 AWG to 300 kcmil conductors.
  • Rated tightening torque of 28.5 Nm (252 lb-in).
  • 75°C maximum conductor temperature per UL 486A-486B.

3VA9133-0JC12 Applications

  • Accessory for Siemens 3VA4/5 125 breakers.
  • Connects large stranded copper conductors up to 150 mm².
  • Provides control wire voltage tap-off capability.
  • Suitable for industrial power distribution panels.

3VA9133-0JC12 FAQs

7 frequently asked questions generated from this part’s specifications.
What conductor sizes does the Siemens 3VA9133-0JC12 support?

It supports stranded copper and aluminum conductors from 25 mm² to 150 mm² according to IEC standards, and from 4 AWG to 300 kcmil according to UL standards.

What is the required stripped length for connections?

The stripped length is 30.5 mm for IEC connections and 1.2 inches for UL connections.

What is the tightening torque for copper cables?

The tightening torque is 28.5 Nm for stranded and finely stranded copper cables (IEC) and 252 lb-in for stranded and finely stranded copper cables (UL).

What is the permissible conductor temperature according to UL?

The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.

What is the RoHS status of this wire connector?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL)?

The Moisture Sensitivity Level is 1 Unlimited.

What is the REACH status?

The REACH status is REACH Unaffected.
