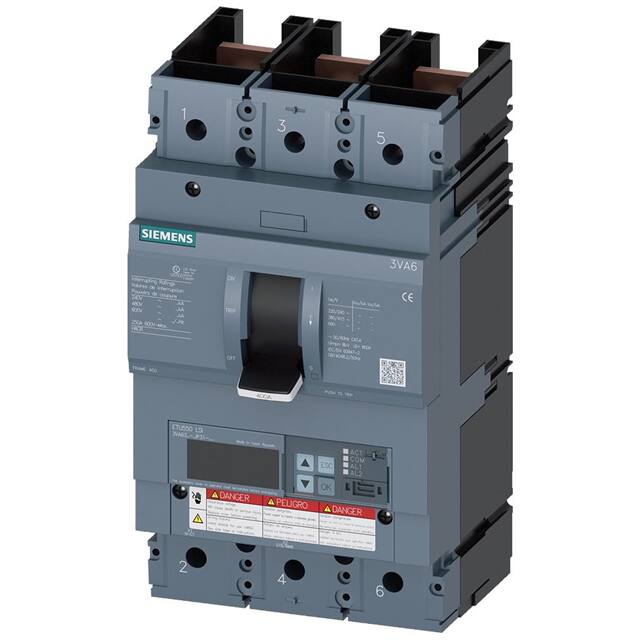

This Siemens 3VA6340-5JP31-0AA0 is a 3-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It has a nominal current rating of 400A and a breaking capacity of 35kA at 480V, with higher capacities at lower voltages according to UL 489 standards.
The circuit breaker utilizes an ETU550 electronic trip unit with LSI (Long-time, Short-time, Instantaneous) protection functions. Overload protection is adjustable from 160A to 400A, while short-circuit protection settings include Isd from 0.6 to 10 times the rated current and Ii from 1.5 to 10 times the rated current. It operates with a maximum insulation voltage of 600V and a rated voltage of 690V.
With a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles at 480V, this breaker is built for durability. It features a communication function for system integration. The unit is designed for DIN rail mounting and has dimensions of 248mm height, 138mm width, and 110mm depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating varies with temperature, from 375A at 55°C down to 300A at 70°C. The nominal current rating is 400A.
According to UL 489, the breaking capacity is 35kA at 480V and 18kA at 600V. According to IEC 60947, the breaking capacity (Icu) is 85kA at 240V, 55kA at 415V, and 5kA at 690V.
The ETU550 offers LSI (Long-time, Short-time, Instantaneous) protection functions for overload and short-circuit events.
The circuit breaker has a height of 248mm, a width of 138mm, and a depth of 110mm.
Yes, this circuit breaker is equipped with a communication function.
