| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

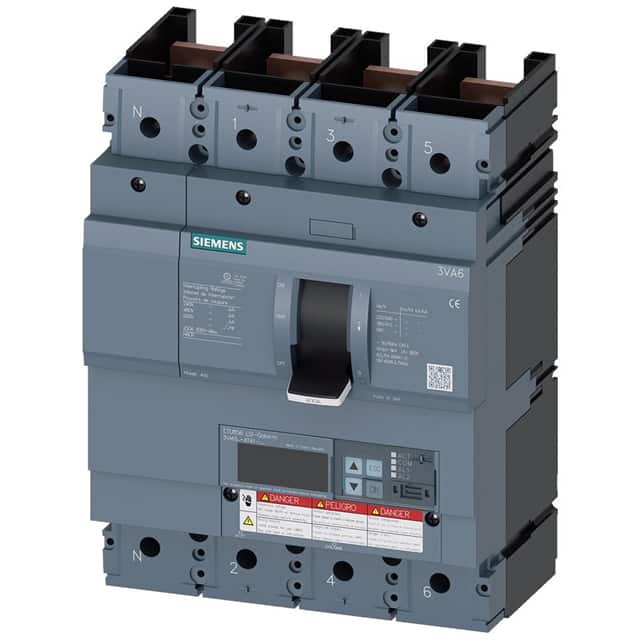

This Siemens 3VA6325-5KT41-0AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection. It offers a current rating of 250A and a voltage rating of 690V.
The circuit breaker features an ETU856 overcurrent release with LSI protection functions, providing adjustable overload protection (Ir) from 100A to 250A and short-circuit protection (Isd) from 0.6 to 10x In, and (Ii) from 1.5 to 12x In. It also includes adjustable N conductor protection up to 160%.
With a breaking capacity of 35kA at 480V according to UL 489 and 55kA at 415V according to IEC 60947, this breaker is suitable for various applications. It supports communication and other measurement functions.
The device is designed for DIN rail mounting and has a mechanical service life of 15,000 cycles. It also meets RoHS3 compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures up to 70°C.
The insulation voltage rating is 600 V.
It offers LSI protection with adjustable overload (Ir) from 100A to 250A and short-circuit (Isd) from 0.6 to 10x In, and (Ii) from 1.5 to 12x In.
This circuit breaker has 4 poles.
The breaking capacity according to UL 489 is 35 kA at 480 V.
The mounting type is DIN Rail.
