3VA6225-5JP31-0AA0
Siemens
The Siemens 3VA6225-5JP31-0AA0 is a 3-pole molded-case circuit breaker with a 250A current rating and 690V voltage rating. It offers a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

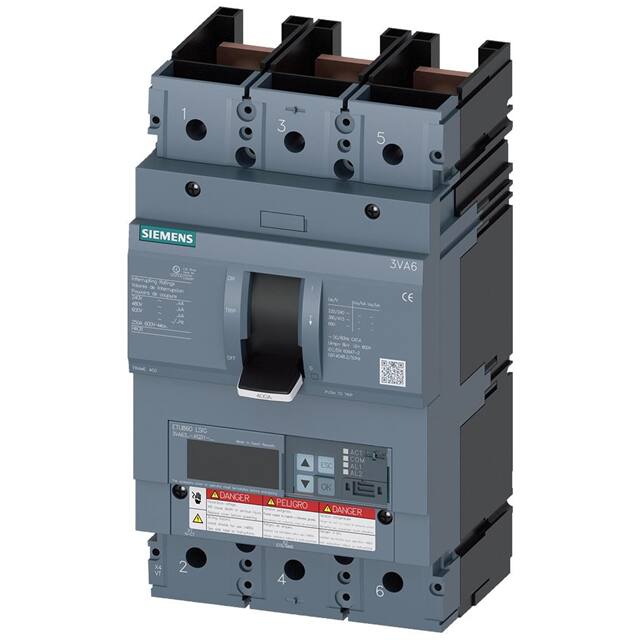

This Siemens 3VA6325-5KQ31-0AA0 is a 3-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It features a nominal current rating of 250A and a voltage rating of 690V.
The circuit breaker is equipped with an ETU860 overcurrent release and supports LSIG protection functions. It offers a breaking capacity of up to 85 kA at 240V according to IEC 60947 standards and 35 kA at 480V according to UL 489 standards.
Designed for DIN rail mounting, this breaker has a mechanical service life of 15,000 switching cycles and electrical endurance ratings of up to 6,000 cycles at 480V and 600V. It also includes communication and other measurement functions.
Key electrical parameters include a maximum power loss of 27.3W and an active power loss of 9.1W per pole. The overload protection is adjustable from 100A to 250A, and short-circuit protection is adjustable from 0.6 to 10 times the nominal current (Isd) and 1.5 to 12 times the nominal current (Ii).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250 A at temperatures up to 70 °C.
The insulation voltage rating is 600 V.
The overcurrent release offers LSIG protection functions.
The breaking capacity at 480 V is 35 kA.
It is designed for DIN rail mounting.
