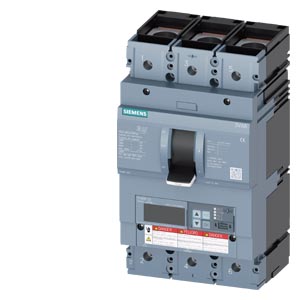

The Siemens 3VA6325-5KP36-2AA0 is a 3-pole UL molded case circuit breaker designed for low voltage applications. It is built with an electronic trip unit (ETU850) featuring LSI (Long-Time, Short-Time, Instantaneous) protection and metering capabilities.
This breaker has a rated permanent current (Iu) of 250A and a rated voltage of 690V. Its breaking capacity at 400V, 50Hz is 110 kA. The overload release is adjustable up to 100A, with a short-term delayed short-circuit release adjustment range of 150A and an undelayed short-circuit release adjustment range of 375A.
Constructed for built-in fixed mounting techniques, it is suitable for DIN rail mounting. The device has an IP40 degree of protection. Special features include connection with an aluminum lug and it is 100% rated. The dimensions are approximately 5.4 inches wide, 9.8 inches high, and 5.4 inches deep.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated permanent current (Iu) is 250 A.
The rated voltage is 690 V.
The rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz is 110 kA.
This is a 3-pole circuit breaker.
It is suitable for DIN rail mounting.
The degree of protection is IP40.
The dimensions are approximately 10.28 inches in length, 6.57 inches in height, and 5.4 inches in width.
