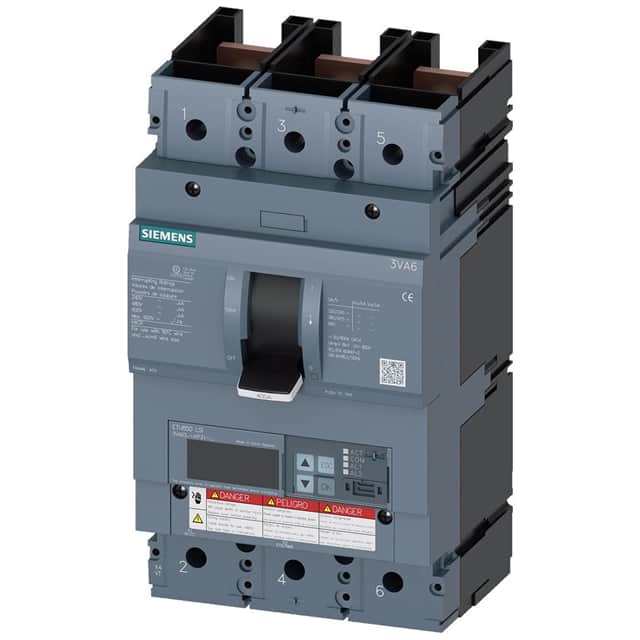

3VA6325-5KP31-2AA0 The Siemens 3VA6325-5KP31-2AA0 is a 3-pole molded-case circuit breaker with a 250A operational current and a breaking capacity of 35kA at 480V. It features an ETU850 overcurrent release with LSI protection.
Mfr Part #:

3VA6325-5KP31-2AA0

Mfr Name: Siemens
Siemens
The Siemens 3VA6325-5KP31-2AA0 is a 3-pole molded-case circuit breaker with a 250A operational current and a breaking capacity of 35kA at 480V. It features an ETU850 overcurrent release with LSI protection.
Stock on Request
$ Price Range: $0.99

3VA6325-5KP31-2AA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating
Current Rating (Amps)
Depth
Height
Illumination
Mounting Type
Number of Poles
Overload Protection
Storage Temperature
Tape & Reel
Voltage Rating
Width

3VA6325-5KP31-2AA0 Description

Short technical summary and product information.

This Siemens 3VA6 molded-case circuit breaker, part number 3VA6325-5KP31-2AA0, is designed for system protection. It is a 3-pole breaker with a rated operational current of 250A and a breaking capacity of 35kA at 480V, conforming to UL 489 standards.



The breaker utilizes an ETU850 overcurrent release with LSI (Long-time, Short-time, Instantaneous) protection functionality. It has a voltage rating of 600V and a maximum power loss of 27.3W. The mechanical service life is typically 15,000 switching cycles, with electrical endurance varying by voltage and load conditions.



Key electrical specifications include overload protection adjustable from 100A to 250A and short-circuit protection adjustable from 0.6 to 10 times the nominal current (Isd) and 1.5 to 12 times the nominal current (Ii). It also supports communication and other measurement functions.



Mechanically, the circuit breaker has dimensions of 248mm in height, 138mm in width, and 110mm in depth. It is designed for DIN rail mounting.

3VA6325-5KP31-2AA0 Quick Information

Product Type: Circuit Breaker
Canonical Name: Siemens 3VA6 Molded-case Circuit Breaker

3VA6325-5KP31-2AA0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA6325-5KP31-2AA0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3VA6325-5KP31-2AA0 Features

  • 3-pole molded-case circuit breaker.
  • 250A operational current rating.
  • 35kA breaking capacity at 480V.
  • ETU850 overcurrent release with LSI.
  • DIN rail mounting type.

3VA6325-5KP31-2AA0 Applications

  • System protection applications.
  • Suitable for HACR Type loads.
  • Industrial control panels.
  • Power distribution systems.

3VA6325-5KP31-2AA0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Siemens 3VA6325-5KP31-2AA0 circuit breaker?

The operational current rating is 250A.

What is the breaking capacity of the 3VA6325-5KP31-2AA0 at 480V?

The breaking capacity is 35kA at 480V according to UL 489.

What type of overcurrent release does this circuit breaker have?

It features an ETU850 overcurrent release with LSI protection.

What is the voltage rating for this Siemens circuit breaker?

The voltage rating is 600V.

How many poles does the 3VA6325-5KP31-2AA0 have?

This circuit breaker has 3 poles.

What are the dimensions of the Siemens 3VA6325-5KP31-2AA0?

The dimensions are 248mm in height, 138mm in width, and 110mm in depth.

Is the Siemens 3VA6325-5KP31-2AA0 RoHS compliant?

The RoHS Status is RoHS3 Compliant.
