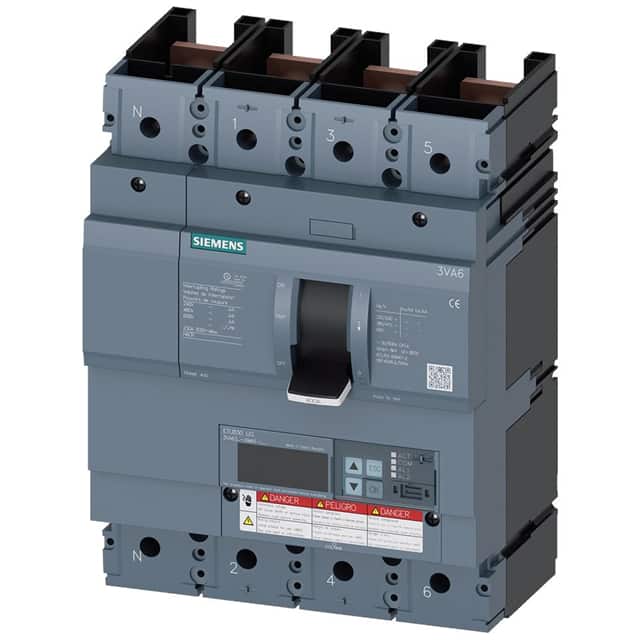

This Siemens 3VA6325-5KM41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It features an operational current of 250A at temperatures up to 70°C and a voltage rating of 690V.
The circuit breaker offers a breaking capacity of 85 kA at 240V and 55 kA at 415V according to IEC 60947 standards. It includes adjustable overload protection (Ir) from 100A to 250A and adjustable short-circuit protection (Ii) from 1.5 to 12 times the rated current. Ground-fault protection (Ig) is also available with adjustable settings.
With a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles, this breaker is built for durability. It supports communication and other measurement functions. The unit is designed for DIN rail mounting and has dimensions of 248 mm height, 184 mm width, and 110 mm depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
The insulation voltage (Ui) is 600V, and the rated voltage is up to 690V.
This circuit breaker has 4 poles.
It features adjustable overload protection (Ir) from 100A to 250A and adjustable short-circuit protection (Ii) from 375A to 3000A. Ground-fault protection (Ig) is adjustable from 50A to 250A with a time setting (tg) from 0.05s to 0.8s.
According to IEC 60947, the breaking capacity (Icu) is 85 kA at 240V, 55 kA at 415V, and 5 kA at 690V. According to UL 489, the breaking capacity is 100 kA at 240V, 35 kA at 480V, and 18 kA at 600V.
The mounting type is DIN Rail.
