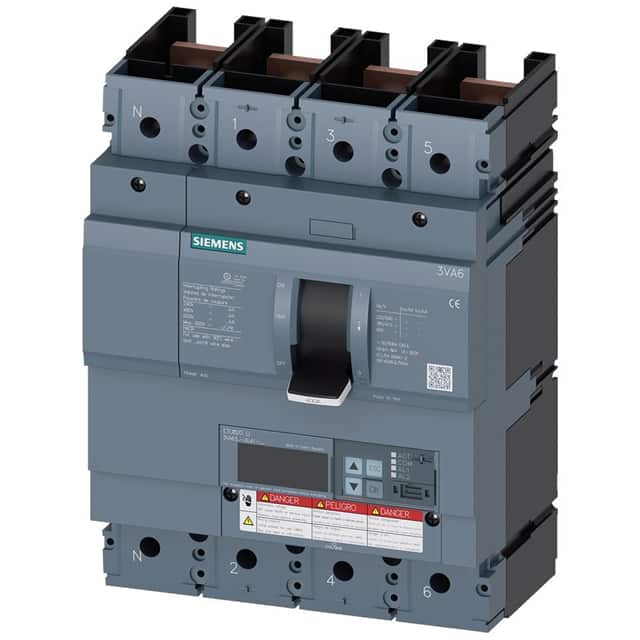

This Siemens 3VA6325-5KL41-2AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection applications. It offers an operational current of 250A at temperatures up to 70°C and a rated insulation voltage of 600V.
The circuit breaker provides robust protection with a breaking capacity of 35kA at 480V according to UL 489 standards and 55kA at 415V according to IEC 60947 standards. It features an ETU820 overcurrent release with LI protection functions and adjustable response currents for overload (Ir) from 100A to 250A and short-circuit (Ii) from 375A to 3000A.
With a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles, this breaker is built for durability. It includes communication and other measurement functions. The unit is housed in a compact design with dimensions of 9.8 inches in height and 7.2 inches in width, suitable for DIN rail mounting.
Compliance includes UL489, CCC, CE, CSA, and EAC approvals. The breaker also supports HACR Type functionality. It has an IP40 protection rating on the front and operates within an ambient temperature range of -25°C to a minimum of 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures up to 70°C.
The voltage rating is 690 V.
The breaking capacity according to UL 489 is 35 kA at 480 V.
The breaking capacity according to IEC 60947 is 55 kA at 415 V.
The adjustable overload response current (Ir) ranges from 100A to 250A, and the adjustable short-circuit response current (Ii) ranges from 375A to 3000A.
The typical mechanical service life is 15,000 switching cycles.
The ingress protection rating on the front is IP40.
