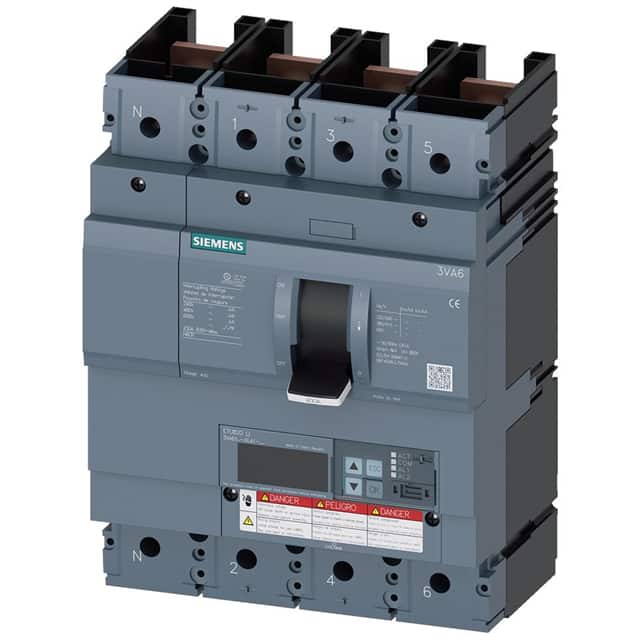

The Siemens 3VA6325-5KL41-0AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection applications. This breaker operates with a rated insulation voltage of 600V and has an operational current of 250A at temperatures up to 70°C.
It offers a breaking capacity of 35kA at 480V according to UL 489 standards, and 55kA at 415V according to IEC 60947. The overcurrent release is an ETU820 with LI protection function, featuring adjustable response currents for overload (Ir) from 100A to 250A and short-circuit (Ii) from 375A to 3000A.
Mechanically, the unit has a height of 9.8 inches and a width of 7.2 inches. It is designed for DIN rail mounting and has an IP40 protection rating on the front. The breaker also includes communication and other measurement functions.
Environmental conditions include an operating temperature range from -25°C. The breaker has a mechanical service life of 15,000 switching cycles and electrical endurance ratings of 6,000 cycles at 380/415V and 480V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures up to 70°C.
It has a breaking capacity of 35kA at 480V according to UL 489, and 55kA at 415V according to IEC 60947.
The rated insulation voltage (Ui) is 600 V.
It is designed for DIN rail mounting.
Overload protection (Ir) is adjustable from 100A to 250A, and short-circuit protection (Ii) is adjustable from 375A to 3000A.
The operating temperature range is from -25°C.
