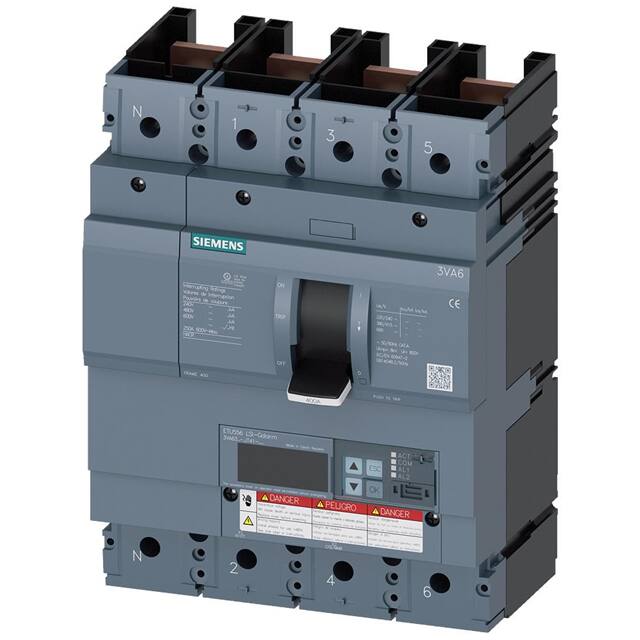

3VA6325-5JT41-0AA0 The Siemens 3VA6325-5JT41-0AA0 is a 4-pole molded-case circuit breaker with a 250A current rating and a breaking capacity of 35kA at 480V. It is designed for system protection.
Mfr Part #:

3VA6325-5JT41-0AA0

Mfr Name: Siemens
Siemens
The Siemens 3VA6325-5JT41-0AA0 is a 4-pole molded-case circuit breaker with a 250A current rating and a breaking capacity of 35kA at 480V. It is designed for system protection.
Stock on Request
$ Price Range: $0.99

3VA6325-5JT41-0AA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Overload Protection
Storage Temperature
Tape & Reel
Voltage Rating

3VA6325-5JT41-0AA0 Description

Short technical summary and product information.

This Siemens 3VA6325-5JT41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection applications. It features an operational current rating of 250A and a breaking capacity of 35kA at 480V according to UL 489 standards. The breaker is equipped with an ETU556 electronic trip unit offering LSI protection functions.



With a voltage rating of up to 600V (UL) and 690V (IEC), this circuit breaker is suitable for various industrial and commercial power distribution systems. It offers adjustable overload and short-circuit protection settings, including Ir from 100A to 250A and Isd from 0.6 to 10x In, Ii from 1.5 to 12x In. The N conductor protection is also adjustable.



The breaker has a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles at 480V and 380/415V. It supports communication functions and is designed for DIN rail mounting.



Key electrical specifications include a maximum power loss of 27.3W and an active power loss per pole of 9.1W. The breaker is compliant with UL489, CE, CSA, EAC, VDE, and CCC standards.

3VA6325-5JT41-0AA0 Quick Information

Product Type: Molded-case circuit breaker
Canonical Name: Siemens 3VA6325-5JT41-0AA0 Molded-case circuit breaker
Subcategory: Molded Case Circuit Breakers

3VA6325-5JT41-0AA0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA6325-5JT41-0AA0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3VA6325-5JT41-0AA0 Features

  • 4-pole molded-case circuit breaker
  • 250A operational current rating
  • 35kA breaking capacity at 480V (UL)
  • ETU556 with LSI protection
  • DIN rail mounting type

3VA6325-5JT41-0AA0 Applications

  • System protection applications
  • Industrial power distribution
  • Commercial power distribution
  • Control panel installations

3VA6325-5JT41-0AA0 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Siemens 3VA6325-5JT41-0AA0 circuit breaker?

The operational current rating is 250A at temperatures from 55°C to 70°C.

What is the voltage rating for this circuit breaker?

The voltage rating is 690 V according to IEC standards and 600 V according to UL standards.

What is the breaking capacity of the 3VA6325-5JT41-0AA0 at 480V?

The breaking capacity according to UL 489 is 35 kA.

How many poles does the Siemens 3VA6325-5JT41-0AA0 have?

This circuit breaker has 4 poles.

What type of mounting is supported by this circuit breaker?

It is designed for DIN Rail mounting.

What are the overload and short-circuit protection settings?

Overload protection is adjustable from 100A to 250A (Ir). Short-circuit protection is adjustable with Isd from 0.6 to 10x In and Ii from 1.5 to 12x In.
