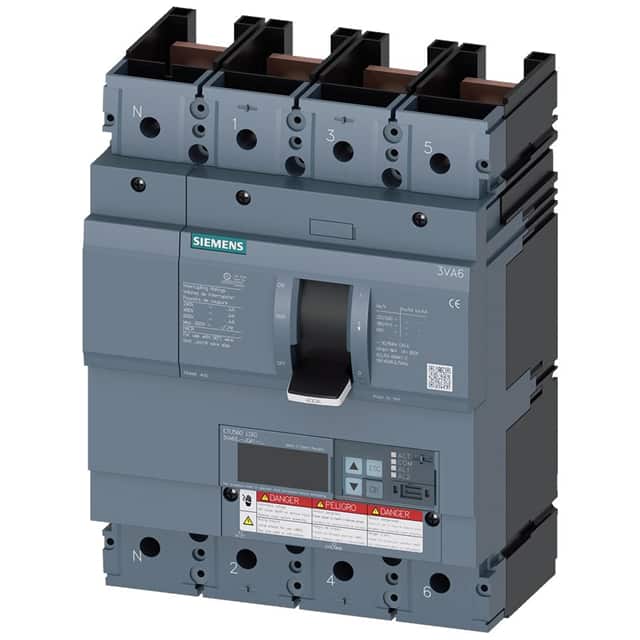

3VA6325-5JQ41-2AA0 The Siemens 3VA6325-5JQ41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a 250A operational current rating and a breaking capacity of 35kA at 480V.
Mfr Part #:

3VA6325-5JQ41-2AA0

Mfr Name: Siemens
Siemens
The Siemens 3VA6325-5JQ41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a 250A operational current rating and a breaking capacity of 35kA at 480V.
Stock on Request
$ Price Range: $0.99

3VA6325-5JQ41-2AA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating

3VA6325-5JQ41-2AA0 Description

Short technical summary and product information.

The Siemens 3VA6325-5JQ41-2AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection applications. It operates with an insulation voltage of 600V and has an operational current rating of 250A across temperatures from 55°C to 70°C.



This circuit breaker offers robust protection with a breaking capacity of 85kA at 240V, 55kA at 415V, and 5kA at 690V according to IEC standards. Under UL 489 standards, it provides a breaking capacity of 100kA at 240V, 35kA at 480V, and 18kA at 600V. The overcurrent release type is ETU560 with LSIG protection functions.



Key features include adjustable overload protection (Ir) from 100A to 250A, adjustable short-circuit protection (Isd) from 0.6 to 10x In, and adjustable instantaneous short-circuit protection (Ii) from 1.5 to 12x In. It also includes adjustable ground-fault protection (Ig) from 0.2 to 1x In with a time delay (tg) from 0.05 to 0.8s. The N conductor protection is adjustable from OFF up to 160%.



This device is suitable for DIN rail mounting and features a mechanical service life of 15,000 cycles and electrical endurance ratings up to 6,000 cycles. It also supports communication functions.

3VA6325-5JQ41-2AA0 Quick Information

Product Type: Circuit Breaker
Series: SENTRON
Canonical Name: Siemens 3VA6325-5JQ41-2AA0 Molded-case circuit breaker
Subcategory: Molded Case Circuit Breaker

3VA6325-5JQ41-2AA0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA6325-5JQ41-2AA0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3VA6325-5JQ41-2AA0 Features

  • 4-pole molded-case circuit breaker.
  • 250A operational current rating.
  • 35kA breaking capacity at 480V (UL).
  • ETU560 electronic trip unit with LSIG.
  • Adjustable overcurrent and short-circuit protection.

3VA6325-5JQ41-2AA0 Applications

  • System protection applications.
  • Industrial control panels.
  • Power distribution systems.
  • Machine safety circuits.

3VA6325-5JQ41-2AA0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Siemens 3VA6325-5JQ41-2AA0 circuit breaker?

The operational current rating is 250A at temperatures from 55°C to 70°C.

What is the breaking capacity of the 3VA6325-5JQ41-2AA0 circuit breaker at 480V?

The breaking capacity according to UL 489 is 35kA at 480V.

What type of overcurrent protection does the ETU560 unit provide?

The ETU560 unit provides LSIG (Long-time, Short-time delayed, Instantaneous, Ground-fault) protection.

What is the insulation voltage rating for this circuit breaker?

The insulation voltage (Ui) is rated at 600V.

How is the Siemens 3VA6325-5JQ41-2AA0 circuit breaker mounted?

This circuit breaker is designed for DIN rail mounting.

What is the mechanical service life of this circuit breaker?

The typical mechanical service life is 15,000 switching cycles.

Does this circuit breaker support communication functions?

Yes, this circuit breaker supports communication functions.
