3VA5225-7EF31-0AA0
Siemens
The Siemens 3VA5225-7EF31-0AA0 is a 3-pole molded-case circuit breaker designed for system protection. It offers a current rating of 250A and a breaking capacity of 100kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

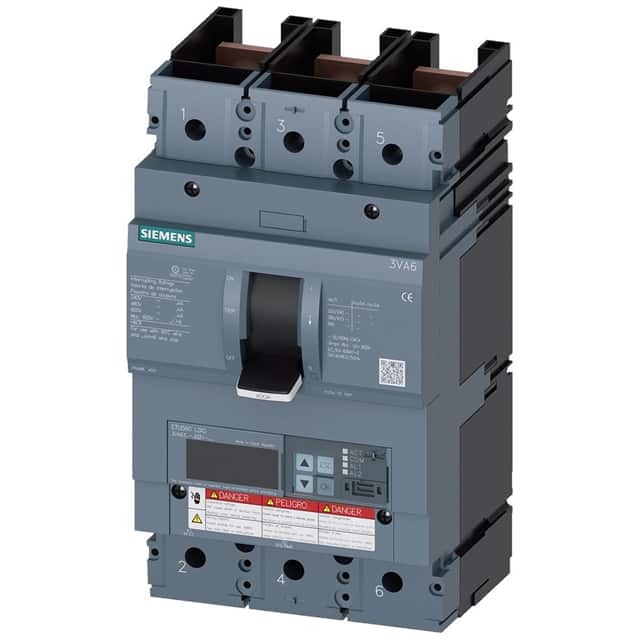

The Siemens 3VA6325-5JQ31-2AA0 is a 3-pole molded-case circuit breaker designed for system protection. It features a current rating of 250A and a voltage rating of 690V.
This circuit breaker provides a breaking capacity of 35kA at 480V according to UL 489 standards, and 55kA at 415V according to IEC 60947 standards. It is equipped with an ETU560 overcurrent release and supports LSIG protection functions.
Designed for DIN rail mounting, this breaker has a mechanical service life of 15,000 switching cycles. It also includes features such as a communication function and is HACR Type rated.
Key electrical specifications include an isolation voltage of 600V, maximum power dissipation of 27.3W, and adjustable settings for overload, short-circuit, and ground-fault protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures from 55°C to 70°C.
The voltage rating is 690V.
The breaking capacity according to UL 489 is 35kA at 480V.
This is a 3-pole circuit breaker.
It supports DIN Rail mounting.
Yes, it features a communication function.
It includes overload (Ir), short-circuit (Isd, Ii), and ground-fault (Ig) protection, indicated by LSIG.
