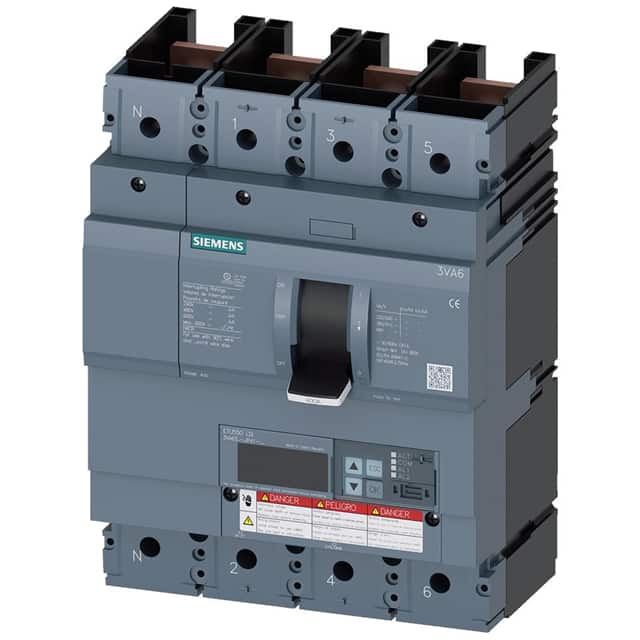

The Siemens 3VA6325-5JP41-2AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection. It features an ETU550 overcurrent release with LSI protection functions.
This circuit breaker has an operational current rating of 250A at temperatures up to 70°C and a nominal voltage rating of 690V AC. Its breaking capacity according to UL 489 is 35kA at 480V and 18kA at 600V. According to IEC standards, the breaking capacity (Icu) is 55kA at 415V and 5kA at 690V.
Key electrical features include adjustable overload protection (Ir) from 100A to 250A and short-circuit protection (Isd) from 0.6x to 10x In, and (Ii) from 1.5x to 12x In. It also includes adjustable N conductor protection up to 160% and a communication function.
The mechanical design includes dimensions of 248mm height, 184mm width, and 110mm depth, with a DIN rail mounting type and a lever actuator. The typical mechanical service life is 15,000 switching cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
The voltage rating is 690 V AC.
The breaking capacity according to UL 489 is 35 kA at 480V.
It uses the ETU550 overcurrent release with LSI protection functions.
The dimensions are 248mm in height, 184mm in width, and 110mm in depth.
Yes, it has a communication function.
