3VA6325-5HN41-0AA0
Siemens

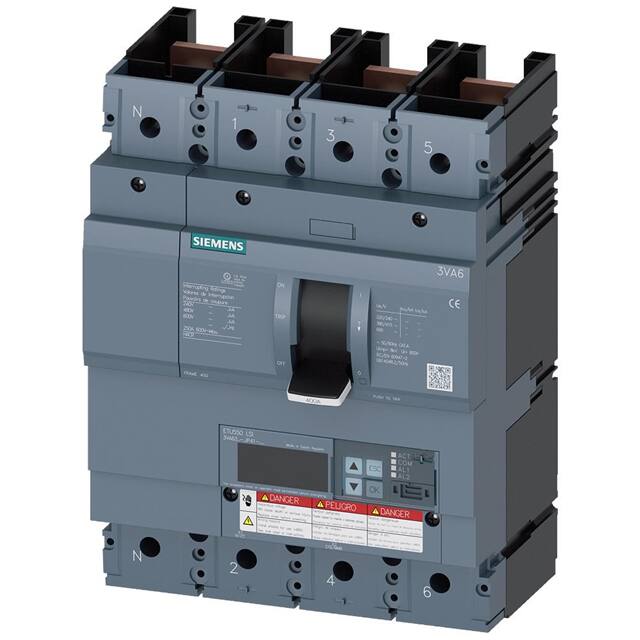

The Siemens 3VA6325-5HN41-0AA0 is a 4-pole molded-case circuit breaker designed for system protection. It offers a 250A operational current and a 690V voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |
The Siemens 3VA6325-5JP41-0AA0 is a robust 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection. It offers a nominal current rating of 250A and a voltage rating of 690V, with a breaking capacity of up to 85 kA at 240V according to IEC standards.
This circuit breaker utilizes an ETU550 electronic trip unit with LSI (Long-time, Short-time, Instantaneous) protection functions. The adjustable current settings for overload (Ir) range from 100A to 250A, and for short-circuit (Isd) from 150A to 2500A. It also features adjustable instantaneous trip settings (Ii) from 375A to 3000A.
Designed for convenient installation, the 3VA6325-5JP41-0AA0 features DIN rail mounting. Its mechanical dimensions are 248 mm in height, 184 mm in width, and 110 mm in depth. The breaker also includes communication capabilities.
With a mechanical service life of 15,000 switching cycles and electrical endurance ratings of up to 6,000 cycles at various voltage levels, this circuit breaker is built for reliability in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures from 55°C to 70°C.
The insulation voltage (Ui) is 690 V.
The ETU550 offers LSI protection, which stands for Long-time, Short-time, and Instantaneous.
This circuit breaker is designed for DIN rail mounting.
The dimensions are 248 mm in height, 184 mm in width, and 110 mm in depth.
