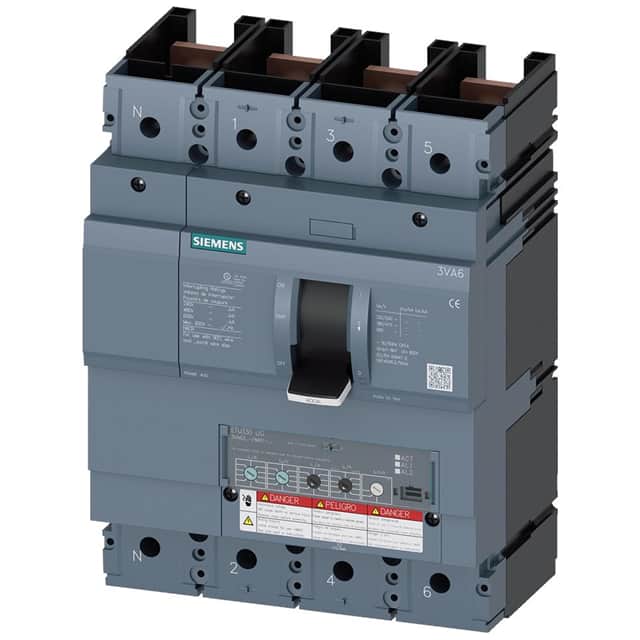

The Siemens 3VA6325-5HM41-2AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection applications. This breaker features a 250A operational current rating and a maximum voltage rating of 690V. It is built to UL 489 standards and carries multiple agency approvals including CCC, CE, CSA, and EAC.
Key electrical specifications include a breaking capacity of up to 85kA at 240V (IEC) and 35kA at 480V (UL). The overcurrent release type is ETU330 with LIG protection function, offering adjustable overload protection from 100A to 250A and short-circuit protection from 1.5 to 12 times the rated current. It also includes adjustable ground-fault protection.
Mechanically, the circuit breaker has a typical service life of 15,000 switching cycles and is designed for DIN rail mounting. Its dimensions are 248mm in height, 184mm in width, and 110mm in depth. The breaker is marked as 100%-rated according to UL 489.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures from 55°C to 70°C.
The insulation voltage is 600V, and the rated voltage is 690V.
The breaking capacity according to UL 489 is 35kA at 480V.
This circuit breaker has 4 poles.
It is designed for DIN rail mounting.
Overload protection (Ir) is adjustable from 100A to 250A, and short-circuit protection (Ii) is adjustable from 1.5 to 12 times the rated current.
