3VA6325-5KL31-0AA0
Siemens

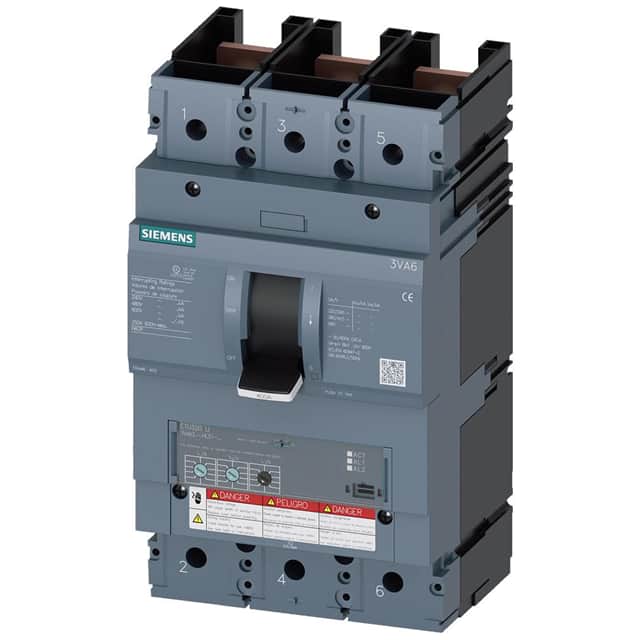

The Siemens 3VA6325-5KL31-0AA0 is a 3-pole molded-case circuit breaker designed for system protection. It offers a current rating of 250A and a voltage rating of 690V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |
This Siemens 3VA6325-5HL31-0AA0 is a molded-case circuit breaker designed for system protection. It features a 3-pole configuration and a current rating of 250A, with an adjustable overload protection (Ir) from 100A to 250A and short-circuit protection (Ii) from 1.5 to 12 times the rated current.
The circuit breaker offers a high breaking capacity, with Icu at 240V of 85kA, at 415V of 55kA, and at 690V of 5kA. It also has a UL 489 breaking capacity of 35kA at 480V and 18kA at 600V. The insulation voltage is rated at 600V.
With a mechanical service life of 15,000 switching cycles and electrical endurance ratings of 6,000 cycles at 380/415V and 480V, this breaker is built for durability. It has a maximum power loss of 27.3W and an active power loss of 9.1W per pole. The operating temperature range is from -25°C to 70°C.
Designed for DIN rail mounting, this circuit breaker has dimensions of 9.8 inches in height, 5.4 inches in width, and 4.3 inches in depth. It has a protection class of IP40 on the front.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
The insulation voltage is 600V, and the maximum voltage rating is 690V.
According to IEC, the breaking capacity (Icu) is 85kA at 240V, 55kA at 415V, and 5kA at 690V. According to UL 489, the breaking capacity is 100kA at 240V, 35kA at 480V, and 18kA at 600V.
The operating temperature range is from -25°C minimum.
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
