3VA6325-5KL31-0AA0
Siemens
The Siemens 3VA6325-5KL31-0AA0 is a 3-pole molded-case circuit breaker designed for system protection. It offers a current rating of 250A and a voltage rating of 690V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

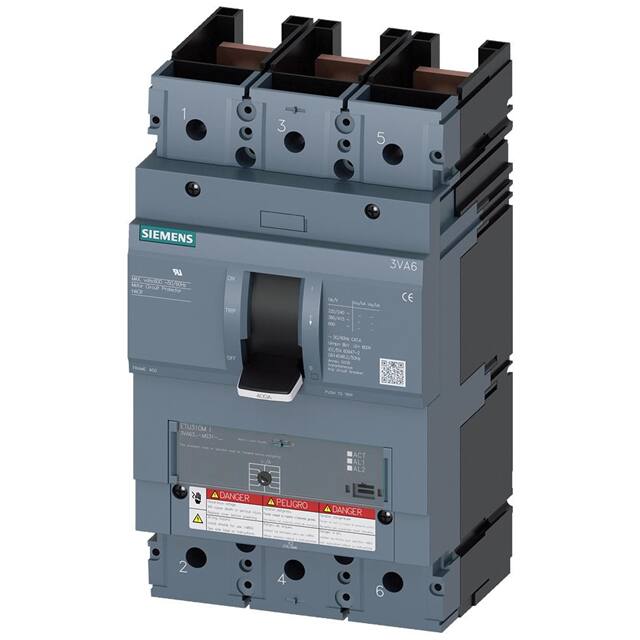

The Siemens 3VA6325-1MS31-0AA0 is a 3-pole molded-case circuit breaker from the 3VA6 series, designed for starter protection applications. It features a current rating of 250A and a voltage rating of 690V.
This circuit breaker has a mechanical service life of 15,000 cycles and electrical endurance ratings of 6,000 cycles at 380/415V and 480V, and 4,000 cycles at 690V. The short-circuit protection current (li) is adjustable from 750A to 3,750A.
With a maximum power dissipation of 27.3W, it operates within an ambient temperature range of -25°C to 70°C. The unit has an IP40 protection class on the front and is designed for DIN rail mounting.
Key technical specifications include an insulation voltage of 600V and a power loss per pole of 9.1W under rated conditions. The dimensions are 9.8 inches in height, 5.4 inches in width, and 4.3 inches in depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures up to 70°C.
The voltage rating is 690 V.
This circuit breaker has 3 poles.
It supports DIN rail mounting.
The operating temperature range is from -25°C to 70°C.
The adjustable short-circuit protection current (li) ranges from 750A minimum to 3,750A maximum.
