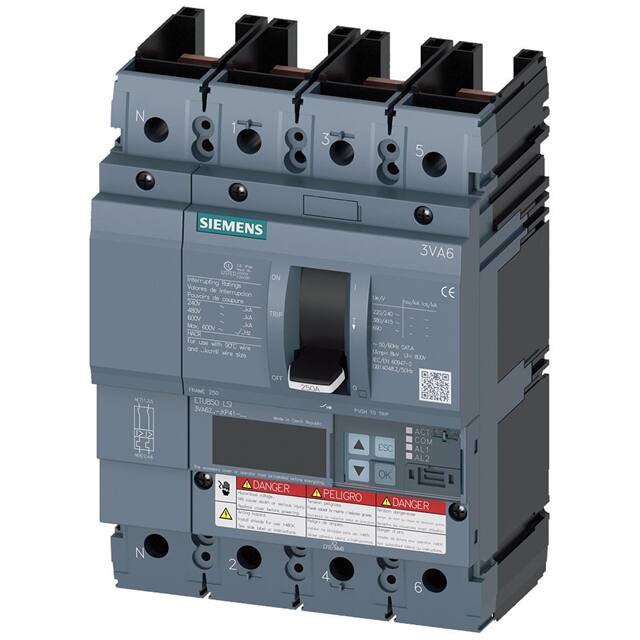

The Siemens 3VA6225-5KP41-2AA0 is a robust molded-case circuit breaker designed for system protection. This 4-pole unit features a 250A current rating and a rated insulation voltage of 600V, with a maximum operating voltage of 690V.
It boasts a significant breaking capacity, rated at 35kA at 480V according to UL 489 standards, and 55kA at 415V per IEC 60947. The overcurrent release is an ETU850 with LSI protection functions. The breaker is designed for DIN rail mounting and has a mechanical service life of 20,000 switching cycles.
Additional features include communication and other measurement functions, making it suitable for various industrial applications. The operational current varies with temperature, from 238A at 55°C down to 200A at 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 250A.
The voltage rating is 690 V.
The breaking capacity according to UL 489 is 35 kA.
It has 4 poles.
It supports DIN Rail mounting.
Yes, it has communication function.
The typical mechanical service life is 20,000 switching cycles.
