3VA6225-5JP41-2AA0
Siemens

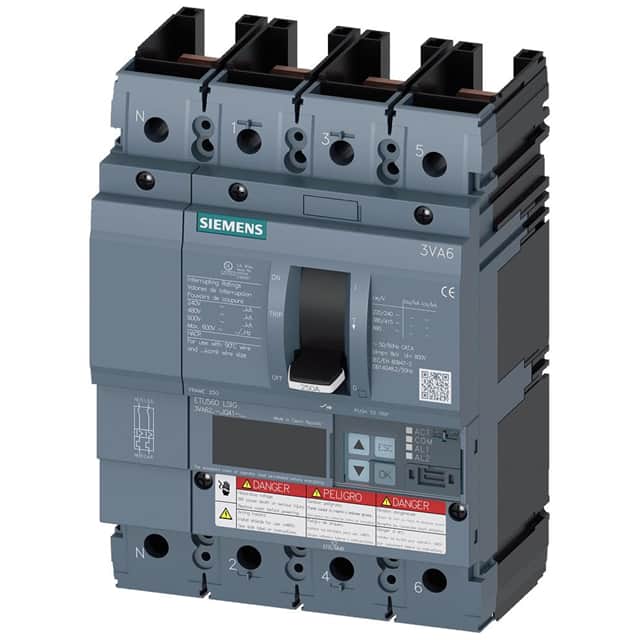

The Siemens 3VA6225-5JP41-2AA0 is a 4-pole molded-case circuit breaker rated for 250A and 690V. It features a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Overload Protection | |
| Voltage Rating |
This Siemens 3VA6225-5JQ41-2AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It has a current rating of 250A and a voltage rating of 690V.
The circuit breaker offers a breaking capacity of 35kA at 480V and 100kA at 240V according to UL 489 standards. It includes overload protection adjustable from 100A to 250A and short-circuit protection with Isd=0.6..10x In and Ii=1.5..10x In. The unit is designed for DIN rail mounting and features an actuator type of Lever.
Additional technical data includes a maximum power loss of 42W and a mechanical service life of typically 20,000 switching cycles. Electrical endurance ratings vary by voltage, with 6,000 cycles at 480V and 7,500 cycles at 600V.
This breaker is marked as 100%-rated according to UL 489 and is HACR Type compliant. It also supports communication functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 250A.
The voltage rating is 690V.
The breaking capacity is 35kA at 480V.
It is designed for DIN rail mounting.
The protection functions are LSIG.
Yes, it supports communication functions.
