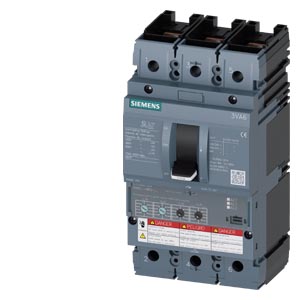

This Siemens 3VA6225-5HM32-0AA0 is a 3-pole, 250A low voltage molded case circuit breaker from the 3VA62 series. It offers a rated voltage of 690V and a rated short-circuit breaking capacity of 55 kA at 400V, 50Hz. The breaker is equipped with an ETU330 electronic trip unit with an undelayed short-circuit release adjustment range of 375A and an overload release setting of 100A.
Designed for fixed built-in technique, this device features DIN rail mounting as an optional feature and a rocker lever control element. The main current circuit connection is at the front side and utilizes screw connections. It has a degree of protection IP40 and includes integrated earth fault protection. The dimensions are 4.1 x 7.8 x 4.2 inches, and it weighs 5.82 lbs. This circuit breaker is manufactured in Czechia.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated permanent current (Iu) is 250 A.
The rated voltage is 690 V.
The rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz is 55 kA.
This circuit breaker supports DIN rail mounting as an optional feature.
Yes, it features integrated earth fault protection.
The degree of protection is IP40.
The dimensions are 4.1 x 7.8 x 4.2 inches (W x H x D).
