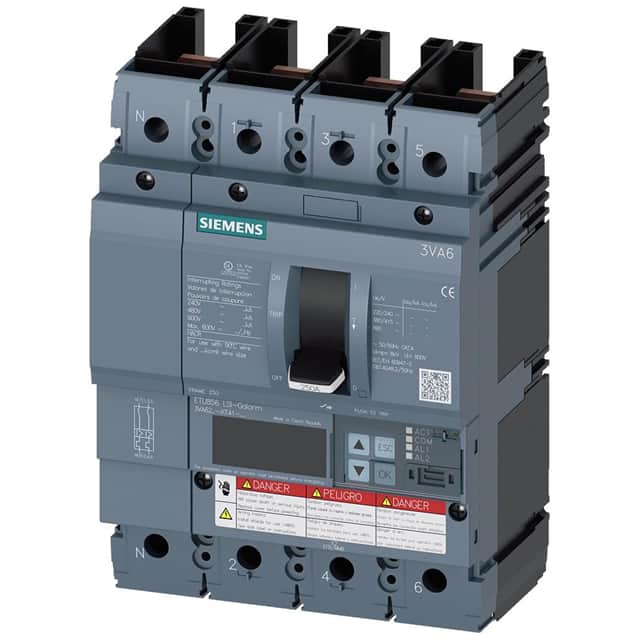

3VA6210-5KT41-2AA0 The Siemens 3VA6210-5KT41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a 100A current rating and a breaking capacity of 35kA at 480V.
Mfr Part #:

3VA6210-5KT41-2AA0

Mfr Name: Siemens
Siemens
The Siemens 3VA6210-5KT41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a 100A current rating and a breaking capacity of 35kA at 480V.
Stock on Request
$ Price Range: $0.99

3VA6210-5KT41-2AA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating

3VA6210-5KT41-2AA0 Description

Short technical summary and product information.

This Siemens 3VA6210-5KT41-2AA0 is a 4-pole molded-case circuit breaker from the 3VA6 UL frame 250 series, designed for system protection applications. It offers a rated current of 100A and a breaking capacity of 35kA at 480V, with various other breaking capacities specified according to IEC and UL standards.



The circuit breaker is equipped with an ETU856 overcurrent release with LSI protection functions. It supports adjustable overload protection from 40A to 100A and short-circuit protection with adjustable settings for Isd (0.6-10x In) and Ii (1.5-12x In). The N conductor protection is also adjustable.



With an insulation voltage rating of 600V and a maximum power loss of 6.7W, this breaker is built for demanding electrical environments. It boasts a mechanical service life of 20,000 switching cycles and significant electrical endurance ratings at different voltage levels. The unit is designed for DIN rail mounting and features a lever actuator.



Additional functions include communication capabilities and other measurement functions. It is marked as a 100%-rated breaker according to UL 489 and is suitable for HACR Type applications.

3VA6210-5KT41-2AA0 Quick Information

Product Type: Circuit Breaker
Canonical Name: Siemens 3VA6 Molded-case Circuit Breaker

3VA6210-5KT41-2AA0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA6210-5KT41-2AA0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3VA6210-5KT41-2AA0 Features

  • 4-pole molded-case circuit breaker
  • 100A operational current rating
  • 35kA breaking capacity at 480V
  • ETU856 with LSI protection
  • Adjustable overload and short-circuit protection

3VA6210-5KT41-2AA0 Applications

  • Used in industrial electrical distribution panels
  • Suitable for circuit protection in commercial systems
  • Ideal for systems requiring DIN rail mounting
  • Provides overload and short-circuit protection

3VA6210-5KT41-2AA0 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Siemens 3VA6210-5KT41-2AA0 circuit breaker?

The operational current rating is 100A at temperatures from 55°C to 70°C.

What is the voltage rating for this circuit breaker?

The voltage rating is 690V.

What is the breaking capacity at 480V?

The breaking capacity at 480V is 35kA according to UL 489 standards.

What type of overcurrent release does this breaker use?

It uses the ETU856 overcurrent release with LSI protection functions.

Is N conductor protection available on this breaker?

Yes, N conductor protection is adjustable, ranging from OFF up to 160%.

How is this circuit breaker mounted?

It is designed for DIN rail mounting.
