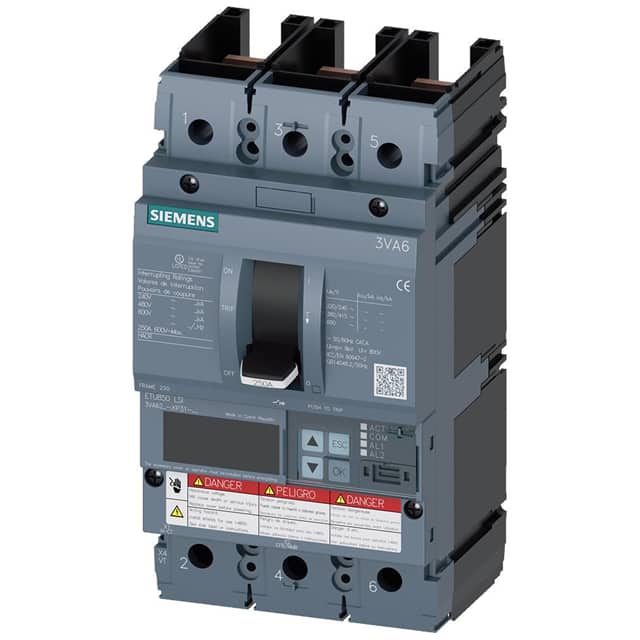

This Siemens 3VA6210-5KP31-0AA0 is a molded-case circuit breaker designed for system protection. It features a 3-pole configuration, a current rating of 100A, and a voltage rating of 690V.
The circuit breaker provides a breaking capacity of 35kA at 480V, 55kA at 415V, and 3kA at 690V according to IEC standards. It is equipped with an ETU850 overcurrent release with LSI protection functions. The operational current is rated at 100A across temperatures from 55°C to 70°C.
With a mechanical service life of 20,000 cycles and electrical endurance ratings of up to 6,000 cycles at 380/415V, this breaker is built for durability. It supports communication and other measurement functions. The unit is designed for DIN rail mounting and has dimensions of 7.8 inches in height, 4.1 inches in width, and 3.4 inches in depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 690V.
It has 3 poles.
The current rating is 100A.
The breaking capacity at 480V is 35kA.
It has a mechanical service life of 20,000 cycles.
Yes, it includes communication functions.
