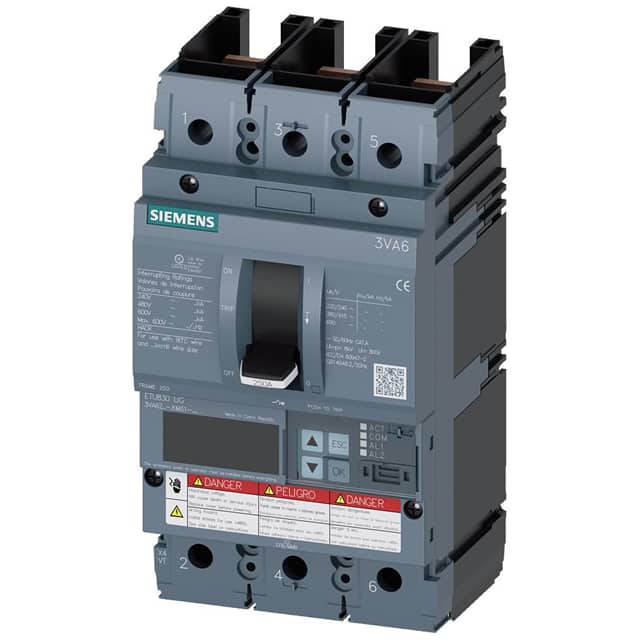

The Siemens 3VA6210-5KM31-2AA0 is a high-performance molded-case circuit breaker from the SENTRON series, designed for robust system protection. This 3-pole breaker operates at a rated voltage of 690V and has an operational current of 100A, maintaining this rating across temperatures from 55°C to 70°C.
It offers significant breaking capacity, rated at 35kA according to UL 489 at 480V, and 55kA according to IEC 60947 at 415V. The breaker is equipped with an ETU830 electronic trip unit featuring LIG protection, with adjustable settings for overload (Ir: 40A-100A), short-circuit (Ii: 1.5-12 x In), and ground-fault (Ig: 0.2-1 x In, tg: 0.05-0.8s).
Designed for convenient installation, it features DIN rail mounting and a lever actuator. The breaker also includes communication and other measurement functions. Its mechanical service life is typically 20,000 switching cycles, with electrical endurance varying by voltage and load conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 100A at temperatures from 55°C to 70°C.
The insulation voltage rating is 600V, and the voltage rating is 690V.
According to UL 489, the breaking capacity is 35kA at 480V. According to IEC 60947, it is 85kA at 240V, 55kA at 415V, and 3kA at 690V.
This circuit breaker is designed for DIN rail mounting.
Overload protection (Ir) is adjustable from 40A to 100A. Short-circuit protection (Ii) is adjustable from 1.5 to 12 times the rated current (In). Ground-fault protection (Ig) is adjustable from 0.2 to 1 times the rated current (In), with a time setting (tg) from 0.05s to 0.8s.
