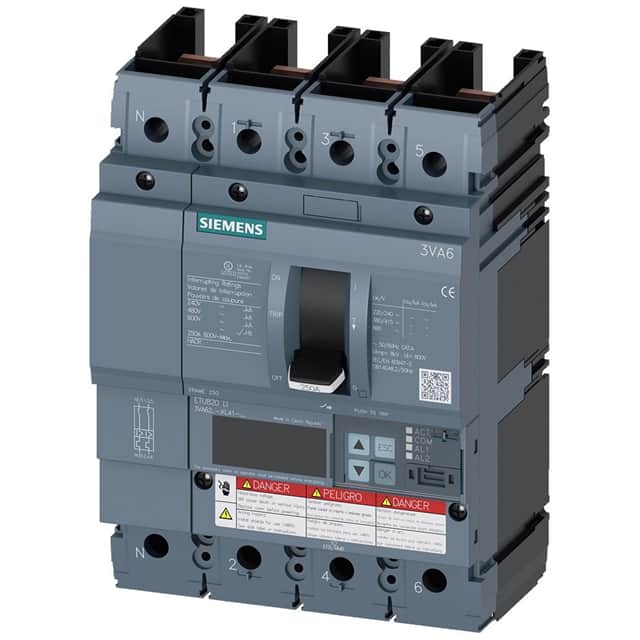

This Siemens 3VA6210-5KL41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It features an operational current of 100A and an insulation voltage of 600V.
The circuit breaker has a breaking capacity of 35kA at 480V according to UL 489 standards, and a switching capacity class of M according to IEC 60947. It includes an ETU820 electronic trip unit with LI protection function, allowing adjustable overload protection from 40A to 100A and short-circuit protection from 1.5 to 12 times the rated current.
With a mechanical service life of 20,000 switching cycles and electrical endurance ratings up to 7,500 cycles at 600V, this breaker is built for durability. It has a protection class of IP40 on the front and can operate in ambient temperatures from -25°C.
The unit is designed for DIN rail mounting and has dimensions of 198mm height, 140mm width, and 86mm depth. It also supports communication and other measurement functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 100A at temperatures up to 70°C.
The insulation voltage (Ui) is 600 V.
The breaking capacity according to UL 489 is 35 kA at 480V.
The minimum adjustable response current (Ir) for overload protection is 40A.
The minimum operating ambient temperature is -25 °C.
