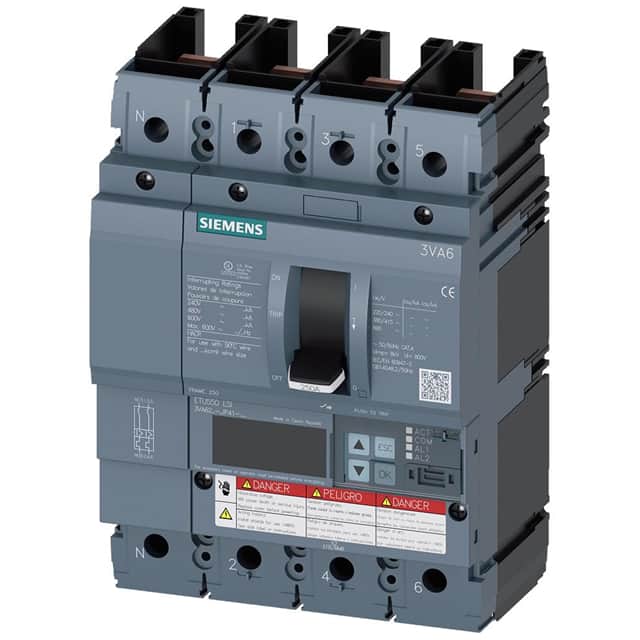

3VA6210-5JP41-2AA0 The Siemens 3VA6210-5JP41-2AA0 is a 4-pole molded-case circuit breaker. It offers a 100A operational current and a breaking capacity of 35kA at 480V.
Mfr Part #:

3VA6210-5JP41-2AA0

Mfr Name: Siemens
Siemens
The Siemens 3VA6210-5JP41-2AA0 is a 4-pole molded-case circuit breaker. It offers a 100A operational current and a breaking capacity of 35kA at 480V.
Stock on Request
$ Price Range: $0.99

3VA6210-5JP41-2AA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating

3VA6210-5JP41-2AA0 Description

Short technical summary and product information.

This Siemens 3VA6210-5JP41-2AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection. It features an insulation voltage rating of 600V and an operational current of 100A across temperatures from 55°C to 70°C.



The circuit breaker provides robust protection with a breaking capacity of 35kA at 480V according to UL 489 standards, and 55kA at 415V according to IEC 60947 standards. It includes adjustable overload protection (Ir) from 40A to 100A and adjustable short-circuit protection (Isd and Ii) with ranges specified in multiples of the nominal current.



Mechanical specifications include a height of 7.8 inches (198 mm), width of 5.5 inches (140 mm), and depth of 3.4 inches (86 mm). The breaker is designed for DIN rail mounting. It also supports communication functions.



With a mechanical service life of 20,000 cycles and electrical endurance ratings of up to 6,000 cycles at 380/415V, this circuit breaker is built for reliability in demanding applications.

3VA6210-5JP41-2AA0 Quick Information

Product Type: Molded-case circuit breaker
Series: SENTRON
Canonical Name: Siemens 3VA6 Molded-case circuit breaker, 4-pole, 100A, 600V AC, 35kA @ 480V
Subcategory: Molded Case Circuit Breaker

3VA6210-5JP41-2AA0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA6210-5JP41-2AA0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

3VA6210-5JP41-2AA0 Features

  • 4-pole molded-case circuit breaker.
  • 100A operational current rating.
  • 600V insulation voltage.
  • 35kA breaking capacity at 480V.
  • DIN rail mounting type.

3VA6210-5JP41-2AA0 Applications

  • System protection applications.
  • Industrial control panels.
  • Power distribution systems.
  • HVAC and refrigeration circuits.

3VA6210-5JP41-2AA0 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operational current of the Siemens 3VA6210-5JP41-2AA0 circuit breaker?

The operational current is 100A at temperatures between 55°C and 70°C.

What is the breaking capacity of this circuit breaker?

The breaking capacity is 35kA at 480V according to UL 489, and 55kA at 415V according to IEC 60947.

What is the insulation voltage rating?

The insulation voltage rating is 600 V.

How is this circuit breaker mounted?

It is designed for DIN rail mounting.

What are the dimensions of the circuit breaker?

The dimensions are 7.8 inches (198 mm) in height, 5.5 inches (140 mm) in width, and 3.4 inches (86 mm) in depth.

Does this circuit breaker support communication functions?

Yes, it supports communication functions.
