3VA5110-4GC41-0AA0
Siemens
The Siemens 3VA5110-4GC41-0AA0 is a 4-pole molded-case circuit breaker. It features a 100A continuous current rating and a breaking capacity of 25kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

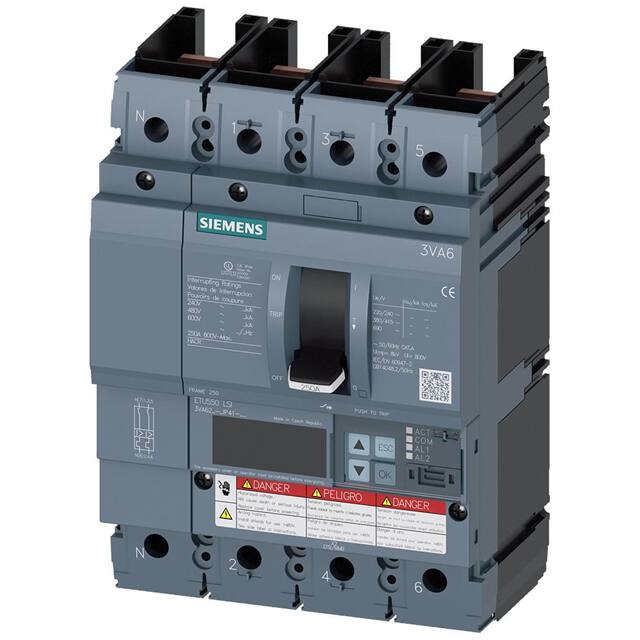

The Siemens 3VA6210-5JP41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It operates with a rated current of 100A and offers a breaking capacity of 35kA at 480V, with higher capacities at lower voltages according to UL 489 standards.
This circuit breaker utilizes an ETU550 overcurrent release with LSI protection functions, allowing for adjustable overload protection (Ir) from 40A to 100A and short-circuit protection (Isd) from 0.6 to 10 times the rated current, and (Ii) from 1.5 to 12 times the rated current. It also includes adjustable N conductor protection up to 160%.
With an insulation voltage rating of 600V and a maximum power loss of 6.7W, the 3VA6210-5JP41-0AA0 is built for reliable performance. It has a mechanical service life of 20,000 cycles and electrical endurance ratings of up to 7,500 cycles at 600V. The unit measures 7.8 inches in height, 5.5 inches in width, and 3.4 inches in depth, designed for DIN rail mounting.
Key electrical specifications include a maximum breaking capacity (Icu) of 85kA at 240V and 55kA at 415V, and a short-circuit making capacity (Icm) of 187kA at 240V. The breaker supports communication functions, enhancing its integration into modern electrical systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 100A at temperatures from 55°C to 70°C.
The breaking capacity according to UL 489 is 35 kA at 480V.
The ETU550 offers LSI (Long-time, Short-time, Instantaneous) protection.
Overload protection (Ir) is adjustable from 40A to 100A. Short-circuit protection (Isd) is adjustable from 0.6 to 10 times the rated current, and (Ii) from 1.5 to 12 times the rated current.
The assigned insulation voltage (Ui) is 600 V.
The dimensions are 7.8 inches (height) x 5.5 inches (width) x 3.4 inches (depth).
The RoHS status is RoHS3 Compliant.
