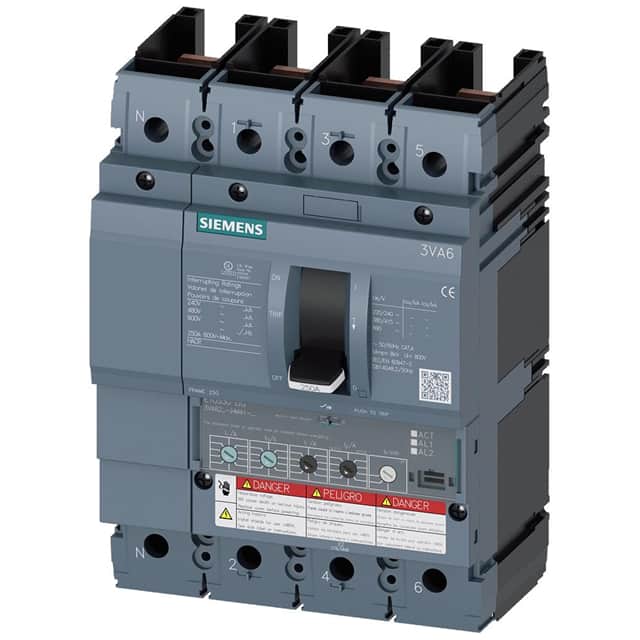

This Siemens 3VA6210-5HM41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 UL frame 250 series, designed for system protection applications. It offers an operational current of 100A at temperatures up to 70°C and a significant breaking capacity.
Key electrical specifications include a maximum insulation voltage of 600V and a breaking capacity according to UL 489 of 35kA at 480V, and 18kA at 600V. The circuit breaker is equipped with an ETU330 electronic trip unit with LIG protection functionality. It provides adjustable overload protection (Ir) from 40A to 100A and adjustable short-circuit protection (Ii) from 1.5 to 12 times the rated current.
Further protection features include adjustable ground-fault protection (Ig) from 0.2 to 1 times the rated current, with adjustable tripping times (Tg) of 0.1s or 0.3s. The mechanical design includes dimensions of 198mm height, 140mm width, and 86mm depth, with a typical mechanical service life of 20,000 switching cycles.
Mounting is facilitated via DIN rail. The circuit breaker is rated for a maximum power loss of 6.7W. It meets various approval standards including CCC, CE, CSA, EAC, UL489, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 100A at temperatures up to 70°C.
The breaking capacity according to UL 489 is 35kA at 480V and 18kA at 600V. According to IEC 60947, it is 55kA at 415V and 3kA at 690V.
Overload protection (Ir) is adjustable from 40A to 100A. Short-circuit protection (Ii) is adjustable from 1.5 to 12 times the rated current. Ground-fault protection (Ig) is adjustable from 0.2 to 1 times the rated current, with tripping times (Tg) of 0.1s or 0.3s.
The insulation voltage (Ui) is 600V, and the rated voltage is 690V.
It is designed for DIN rail mounting.
The dimensions are 198mm in height, 140mm in width, and 86mm in depth.
