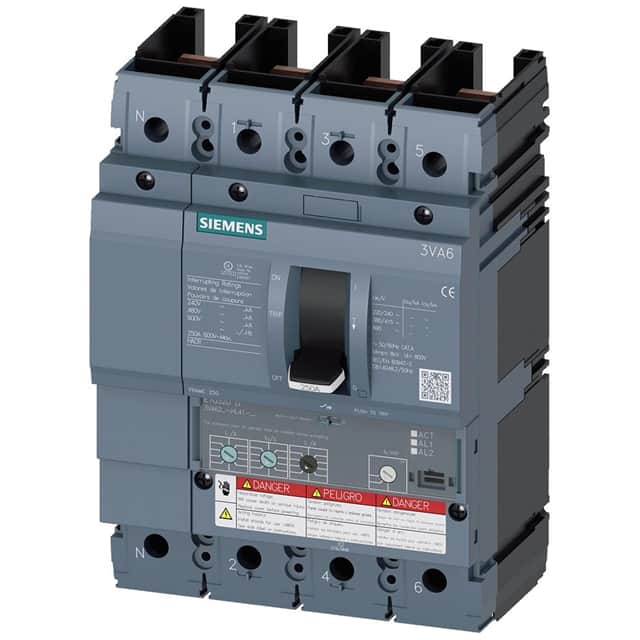

This Siemens 3VA6210-5HL41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 UL frame 250 series. It is designed for system protection and features an ETU320 electronic overcurrent release with LI protection functions. The breaker has a rated current of 100A and an adjustable overload protection range from 40A to 100A, with an adjustable short-circuit protection range of 1.5 to 12 times the rated current.
With an insulation voltage of 600V and a breaking capacity of 35kA at 480V according to UL 489, this circuit breaker is suitable for various applications. It offers a mechanical service life of typically 20,000 switching cycles and an electrical endurance of up to 6,000 cycles at 380/415V.
The unit has a DIN rail mounting type and dimensions of 198mm height, 140mm width, and 86mm depth. It also includes an optional motor drive accessory and has a front protection class of IP40. The breaker is marked as HACR Type and carries approvals from CCC, CE, CSA, EAC, UL489, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 100A.
The insulation voltage is 600V.
The breaking capacity at 480V is 35kA.
This circuit breaker has 4 poles.
It uses DIN Rail mounting.
Yes, it is RoHS3 Compliant.
