3VA5225-6EF41-0AA0
Siemens
The Siemens 3VA5225-6EF41-0AA0 is a four-pole circuit breaker rated for 250A with a breaking capacity of 65KA, suitable for electrical protection applications.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Overload Protection | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

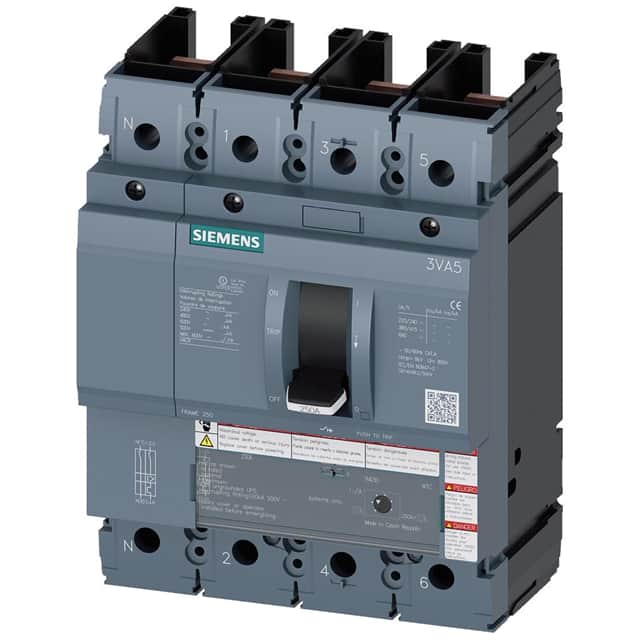

The Siemens 3VA5225-7EF41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA5 series, designed for system protection applications. It operates with a maximum rated operational voltage of 690V AC and 1000V DC, and has a continuous rated current of 250A.
This circuit breaker offers a breaking capacity of 100kA at 480V according to UL 489 standards, and 85kA at 415V according to IEC 60947. It features overload protection adjustable from 200A to 250A and short-circuit protection adjustable from 5 to 10 times the rated current. The TM240 overcurrent release provides LI protection functionality.
With a mechanical service life of typically 20,000 switching cycles and electrical endurance ratings of up to 8,000 cycles at 380/415V, this breaker is built for durability. It is designed for DIN rail mounting and has a maximum power loss of 58W. The unit is HACR Type compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated operational voltage is 690V AC at 50/60Hz and 1000V DC.
The continuous rated current (Iu) is 250A.
The breaking capacity at 480V according to UL 489 is 100kA.
This circuit breaker has 4 poles.
The mounting type is DIN Rail.
