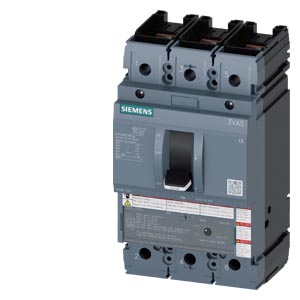

This Siemens 3VA5222-7EC32-1AA0 is a molded-case circuit breaker from the SENTRON product brand, designed for system protection applications. It features a 3-pole configuration and a rated operational current of 225A at 40°C, with a maximum rated voltage of 690V AC.
The circuit breaker has a breaking capacity of 100kA at 480V and 35kA at 600V, according to UL 489 standards. It utilizes a TM230 overcurrent release with LI protection function. The device is built for front connection with screw terminals and has a mechanical service life of 20,000 switching cycles.
With a maximum power loss of 51W, this circuit breaker is suitable for various industrial environments. It has a degree of protection IP40 and is designed for built-in mounting, compatible with DIN rail installation. The dimensions are 185mm in height, 105mm in width, and 83mm in depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operating voltage for this circuit breaker is 690 V AC.
The operational current is 225 A at 40°C, and the rated permanent current (Iu) is 225 A.
The breaking capacity is 100 kA at 480 V and 35 kA at 600 V.
It features a TM230 overcurrent release with LI protection function.
The dimensions are 185 mm in height, 105 mm in width, and 83 mm in depth.
The degree of protection is IP40.
